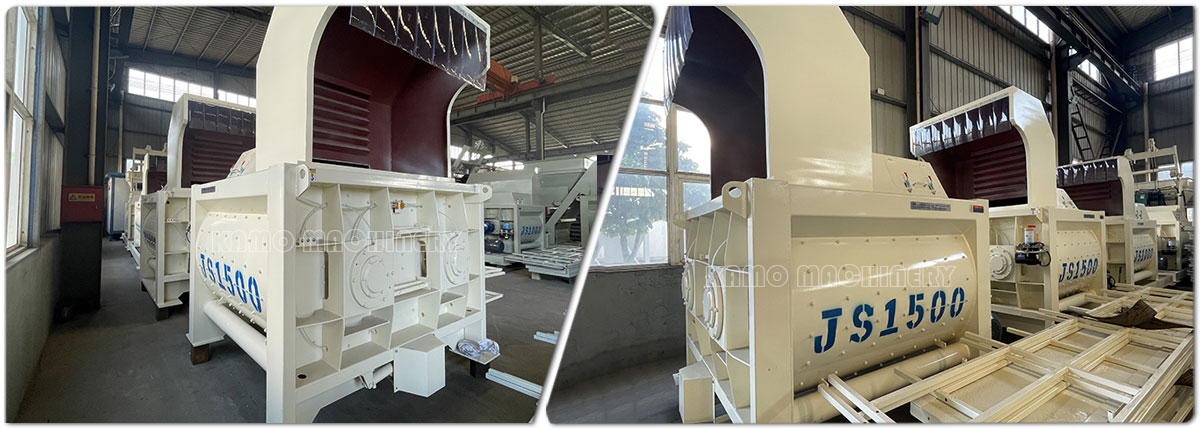

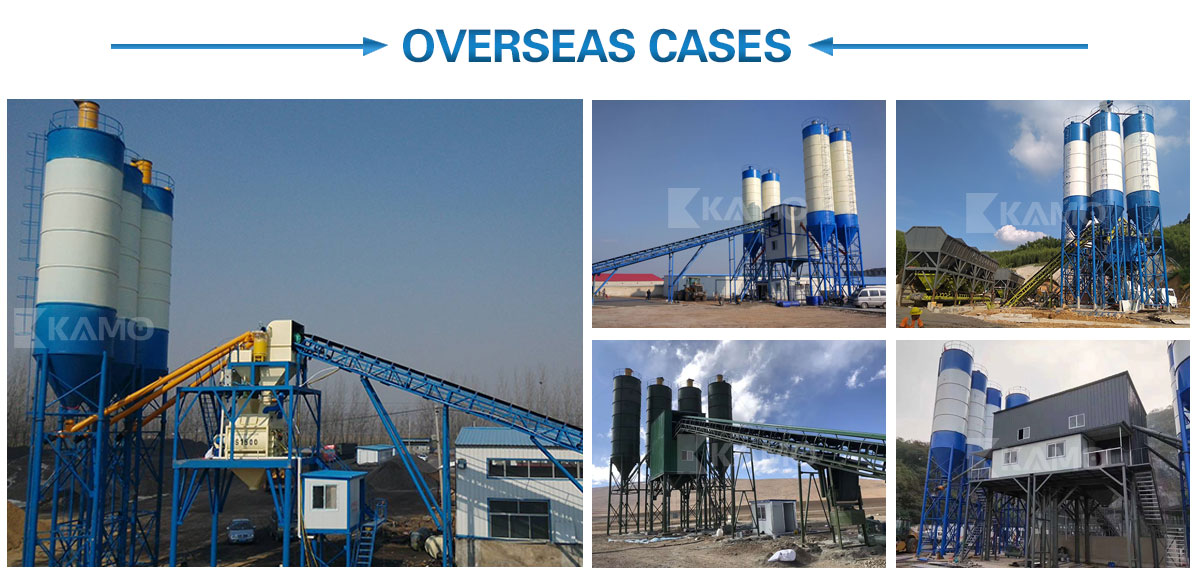

InstagramJS1500 compulsory concrete mixer discharges 1.5 cubic meters each time, also called 1.5 cubic compulsory mixer. It is developed based on Shigaoma's compulsory mixer and combined with the characteristics of domestic users using mixers. . Usually used as the mixing host of HZS75 mixing plant or HZS90 mixing plant, it also has the advantage of stand-alone independent operation.
The JS series concrete mixer is a double-horizontal-shaft forced mixer. This machine has the dual advantages of a single machine independent operation and a simple concrete mixing plant with the PLD series batching machine. It can also provide a supporting host for the mixing station, which is suitable for various large , Small and medium-sized prefabricated component plants and industrial and civil construction projects such as highways, bridges, water conservancy, wharves, etc. It can mix dry hard concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortars. It is a high-efficiency machine It has a wide range of applications.
This series of products have reasonable design structure, novel layout, convenient use and maintenance, and can be modified according to user's special requirements to meet user needs.
JS1500 CONCRETE MIXER VIDEO
TECHNICAL PARAMETERS
| Model | JS500 | JS750 | JS1000A | JS1500A | JS1000B | JS1500B | JS2000 | JS3000 |
| Discharge capacity（L） | 500 | 750 | 1000 | 1500 | 1000 | 1500 | 2000 | 3000 |
| Feeding capacity（L） | 800 | 1200 | 1600 | 2400 | 1600 | 2400 | 3200 | 4800 |
| Theoretical productivity（m³/h） |
≥25 |
≥35 | ≥50 | ≥75 | ≥60 | ≥90 | ≥120 | ≥150 |
| Overall quality（kg） | 4000 | 5500 | 8700 | 11130 | 8700 | 6500 | 7500 | 9200 |
| Stirring motor power（KW） | 18.5 | 30 | 37 | 30 | 37 | 30 | 37 | 55 |
| Increase motor power（KW） | 5.5 | 7.5 | 15 | 18.5 | / | / | / | / |
| Water pump motor power（KW） | 1.1 | 1.5 | 3 | 3 | / | / | / | / |
| Hoisting motor power（KW） | 5.5 | 7.5 | 15 | 18.5 | / | / | / | / |
| Mixing blade speed（r/min） | 31 | 31 | 19.5 | 19.5 | 19.5 | 24.5 | 24.5 | 21 |
| Discharge height（m） | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8-4.2 | 3.8 | 4.2 |
PRODUCT ADVANTAGES
JS1500 compulsory concrete mixer (main machine of 75 mixing station, main machine of 90 mixing station) is suitable for all kinds of large, medium and small prefabricated component factories and industrial and civil construction projects such as highways, bridges, water conservancy, docks, etc. It can mix dry hard concrete and plastic concrete , Flowable concrete, lightweight orthopedic concrete and various mortars. It is a model with a relatively high usage rate and is widely used. The product has a reasonable design structure, a novel layout, and is easy to use and maintain.
WORKING PRINCIPLE

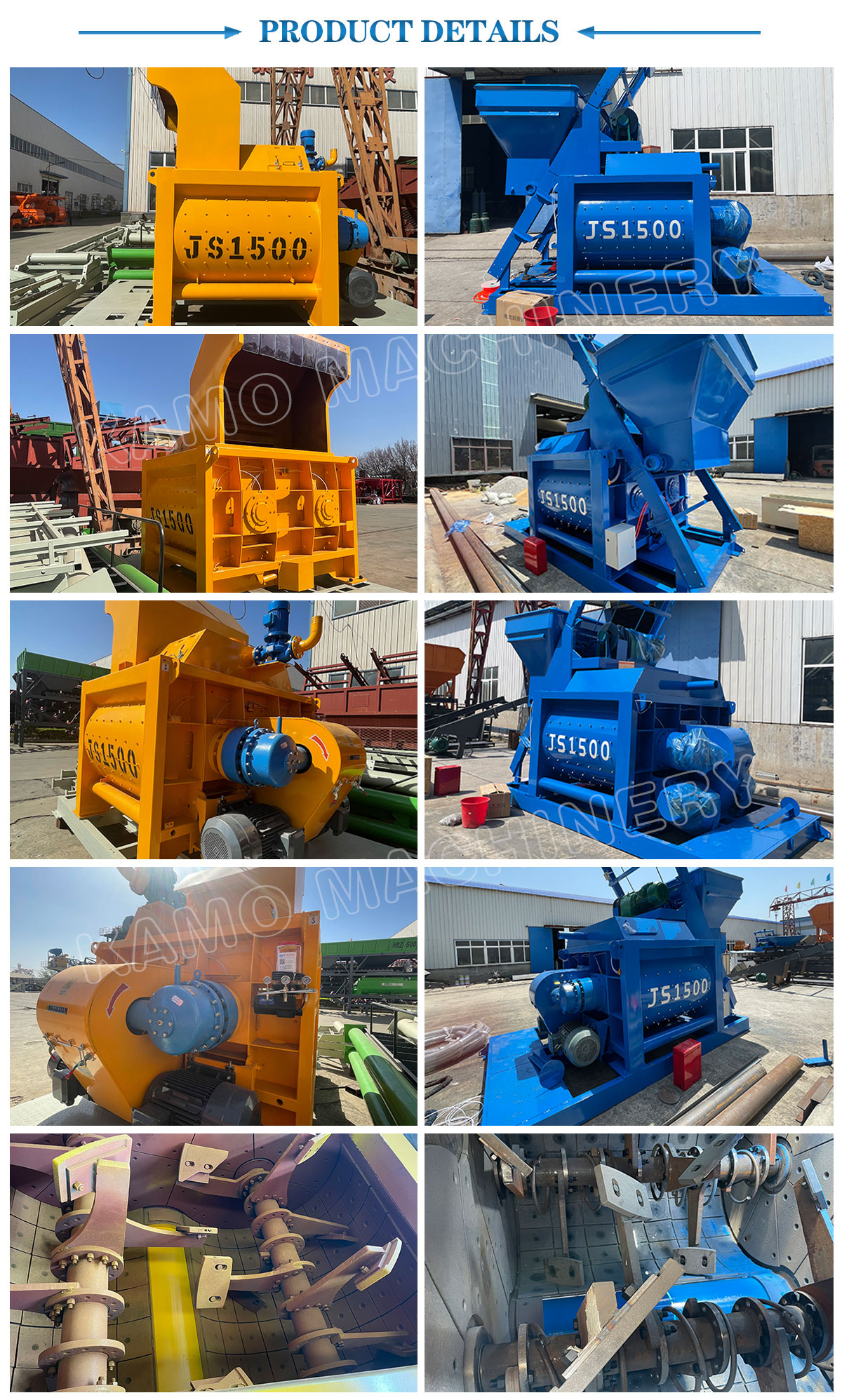

JS1500 double-shaft forced concrete mixer is composed of feeding, mixing, unloading, water supply, electricity, cover, chassis, outriggers and other parts.
The mixing system is composed of a direct-coupled planetary cycloid reducer, open gear, mixing tank, mixing device, oil supply device, etc. The whole machine is composed of feeding, mixing, unloading, water supply, electrical and other parts. The upper hopper sends sand, stones, and cement to the mixing host. The mixing arm inside the mixer and the rotation of the blades mix the materials evenly, and then dump them in the tipping bucket. Truck or concrete mixer truck.
