InstagramConcrete mixer with pump is a kind of concrete pump for sale, which is an indispensable machine in the construction industry. It combines the functions of concrete mixer and concrete pump. Therefore, the concrete mixer pump can achieve simultaneous mixing, transportation and pouring of concrete mixture at the construction site.
JBS series concrete mixer pumps are divided into electric and diesel types. Diesel mixer pumps are particularly popular in foreign countries and regions where power supply is underdeveloped.

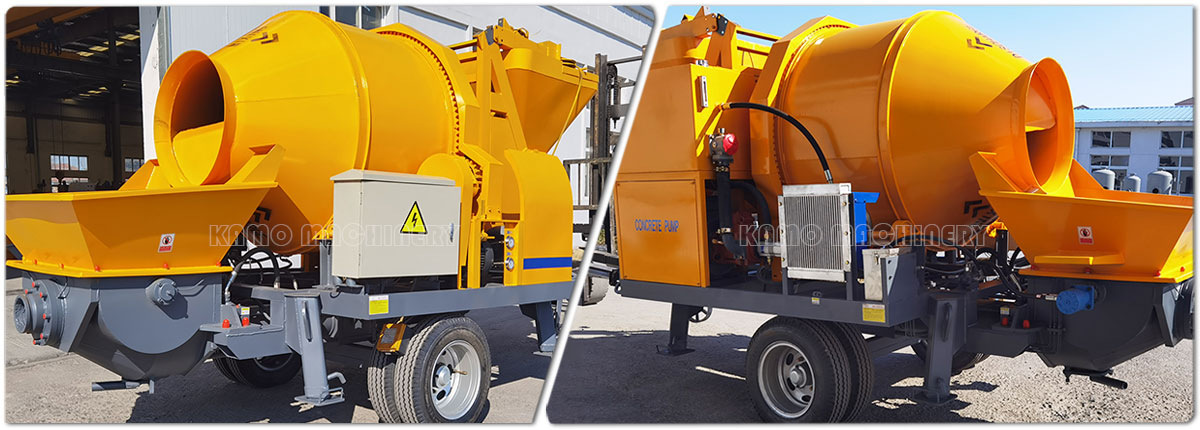

JBS electric concrete mixer pump
This series of products uses electric motors as the driving force, integrating a drum mixer and a delivery pump. It can deliver large aggregate concrete, as well as fine stone concrete or mortar.
Technical features
1. Integrated control of mixing and pumping, wireless remote control, convenient and reliable operation, saving labor
2. Double-layer door design of the electric control box, good sealing, dust and water resistance
3. Double-row tires, heavy load, good stability, especially suitable for traveling on rugged roads
JBS-R diesel concrete mixer pump
This series of products is powered by a diesel engine and integrates a drum mixer with a conveying pump. It can convey large aggregate concrete as well as fine stone concrete or mortar. It is particularly suitable for projects with small workloads but frequent site transfers.
Technical features
1. Integrated control of mixing and pumping, wireless remote control, convenient and reliable operation, saving labor
2. The electric control box is specially designed with double layers, good sealing, dustproof and waterproof effect
3. It adopts double-row tires, has heavy load capacity and good stability, and is especially suitable for walking on rugged roads
4. The use of the simple spreading machine produced by our company can reduce the labor intensity of spreading, and the spreading radius can reach 8 meters
TECHNICAL PARAMETERS
| Model | JBS30（electric） | JBS40（electric） | JBS30R（diesel） | JBS40R（diesel） |
| Theoretical delivery capacity（m³/h） | 30/17 | 46/30 | 30/23 | 40 |
| Concrete delivery pressure（MPa） | 9 | 10 | 9 | 10 |
| Maximum conveying distance（m）vertical horizontal | 120/500 | 140/600 | 120/500 | 140/600 |
| Main motor power（kw） | 37 | 45 | ||
| Diesel engine power（kw） | 66 | 82 | ||
| Delivery cylinder bore × stroke（mm×mm） | 140×1000 | 180×1000 | 140×1000 | 180×1000 |
| Main cylinder bore x stroke（mm×mm） | 80×1000 | 100×1000 | 80×1000 | 100×1000 |
| Maximum aggregate size（mm） | 30 | 40 | 30 | 40 |
| Stirring motor power（kw） | 5.5 | 5.5 | 5.5 | 5.5 |
| Feeding motor power（kw） | 5 | 5 | 5 | 5 |
| Upper hopper capacity（m³） | 0.8 | 0.8 | 0.8 | 0.8 |
| Mixer discharge capacity（m³） | 0.45 | 0.45 | 0.45 | 0.45 |
| Mixer productivity（m³/h） | 10-14 | 10-14 | 10-14 | 10-14 |
| Length × Width × Height（mm） | 4500×2200×2600（transport height） | 4500×2200×2600（transport height） | 4500×2200×2600（transport height） | 4500×2200×2600（transport height） |
| Host quality（kg） | 4000 | 4300 | 4800 | 5200 |
