HZS60 CONCRETE BATCHING PLANT

HZS60 Concrete Batching Plant is the Belt conveying type, the productivity is 60m3/h. This concrete batching plant is designed and manufactured by Zhengzhou KAMO Machinery Co.,Ltd.

It has the automatic feeding function of the belt conveyor, it is widely used in large-medium construction, commercial concrete industry, commercial concrete production plants, road and bridge engineering, concrete product prefabrication plants, precast plants, highway maintenance, bridge construction, etc. It has many advantages such as simple design, quick installation, and space saving, which are ideal for the majority of construction units to produce high-quality concrete.

The mixer adopts the JS series double-horizontal-shaft forced mixer, which adopts the latest design ideas of electronic weighing, microcomputer control, digital display and other control technologies. The electronic weighing has buffer devices and automatic compensation functions, and the measurement accuracy is high. The aggregate feeding system adopts herringbone belt feeding and is equipped with maintenance aisles. There is an aggregate storage bin above the mixer, which increases the feeding speed of aggregates, thereby greatly improving the production efficiency of concrete.

HZS60 CONCRETE BATCHING PLANT

TECHNICAL PARAMETERS

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS100	HZS120	HZS180
Theoretical capacity （m³/h）	25	35	50	60	75	90	100	120	180
Mixer model	JS500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000	JS2000	JS3000
Mixing motor power （kw）	1×18.5	1×30	2×18.5	2×18.5	2×30	2×30	2×37	2×37	2×55
Number of kinds of aggregates (species)	3	3	4	4	4	4	4	4	4
Max. aggregate sizes （mm）	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80
Discharge height（mm）	3.8	3.8	4.2	4.2	4.2	4.2	4.2	4.2	4.2
Maximum weighing value of aggregate（kg）	1200	2000	4000	4000	5000	5000	5000	5000	8000
Maximum weighing value of cement	1200	1200	1200	1200	1500	1500	1500	1500	1800
Maximum weighing value of coal ash（kg）	500	500	600	600	800	800	800	800	1000
Maximum weighing value of water（kg）	500	500	600	600	700	700	700	700	800
Maximum weighing value of additive（kg）	50	50	50	50	50	50	50	50	80
一 type overall dimension（L×W×H）（mm）	11360×8280 ×7866	11360×8280 ×7866	37000×14000 ×10828	37000×14000 ×10828	35000×10000 ×9900	60400×16110 ×12284	64000×17000 ×12484	64000×17000 ×12484	74000×13540 ×11850
L-type overall dimension（L×W×H）（mm）	11360×8280 ×7866	11360×8280 ×7866	40097×20710 ×10828	40097×20710 ×10828	26174×17369 ×9900	47620×21148 ×12284	47000×21000 ×12484	47000×21000 ×12484	53800×25400 ×11850

MAIN FEATURE

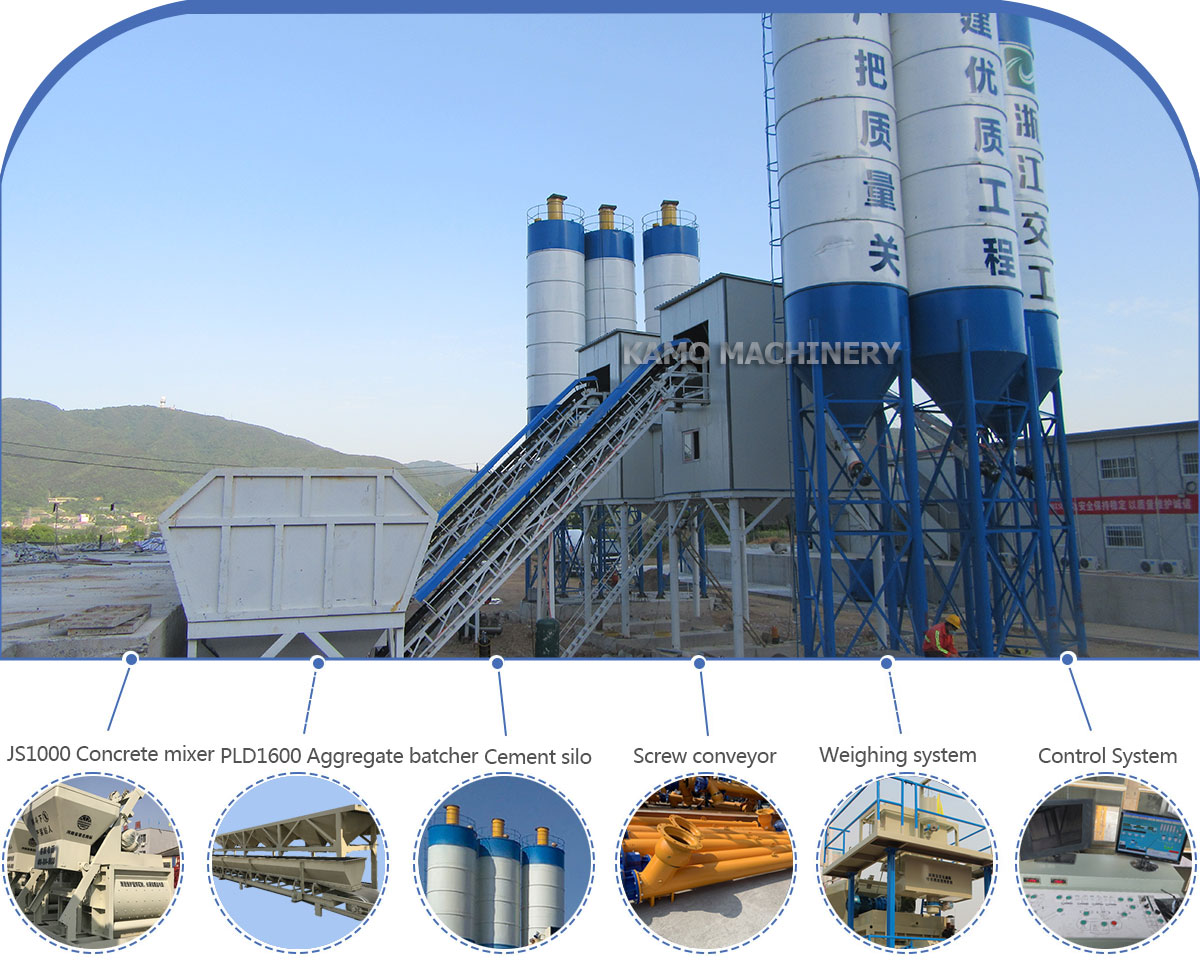

　　1. Aggregate conveying system: Convey aggregares by belt conveyor, conveying efficiently.

　　2. The concrete mixing host adopts high-quality and efficient JS1000 twin-shaft forced mixer, pneumatic discharge, dual motors provide strong power, high wear-resistant mixing blades and liners, precise shaft end seals, SKF bearings, good quality and efficiency High and long life. It can produce high standard concrete, ensure high grade concrete.

　　3. There is an aggregate storage bin above the mixer, and the belt is loaded to the storage bin, which greatly improves production efficiency.

　　4. The aggregate is mixed by the PLD1600 batching machine, with high measuring accuracy and high output. Aggregare batching system: Separate weighing hoppers, make sure the weighing accuracy.

　　5. Cement scale, water scale and admixture scale are all electronically weighed by S-type load cell, with high batching accuracy.

　　6. Adopting the water supply system and the principle of water pump pressurization to speed up the water flow and even spray.

　　7. The main components of the electrical control system adopt well-known brands such as Siemens, Schneider or Chint, with reliable performance and easy operation; the electrical control room is also equipped with printers, air conditioning and lighting functions.

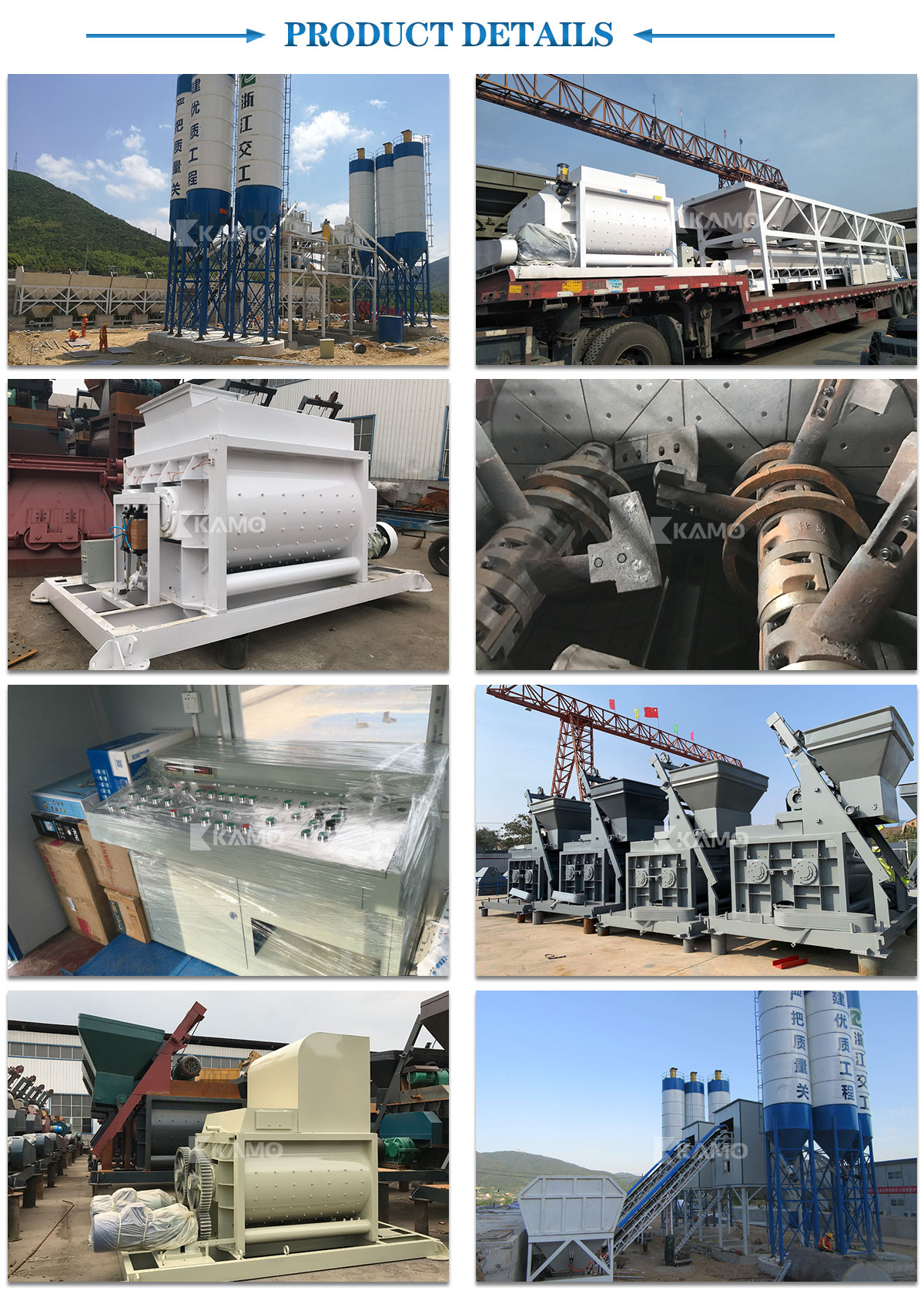

product details

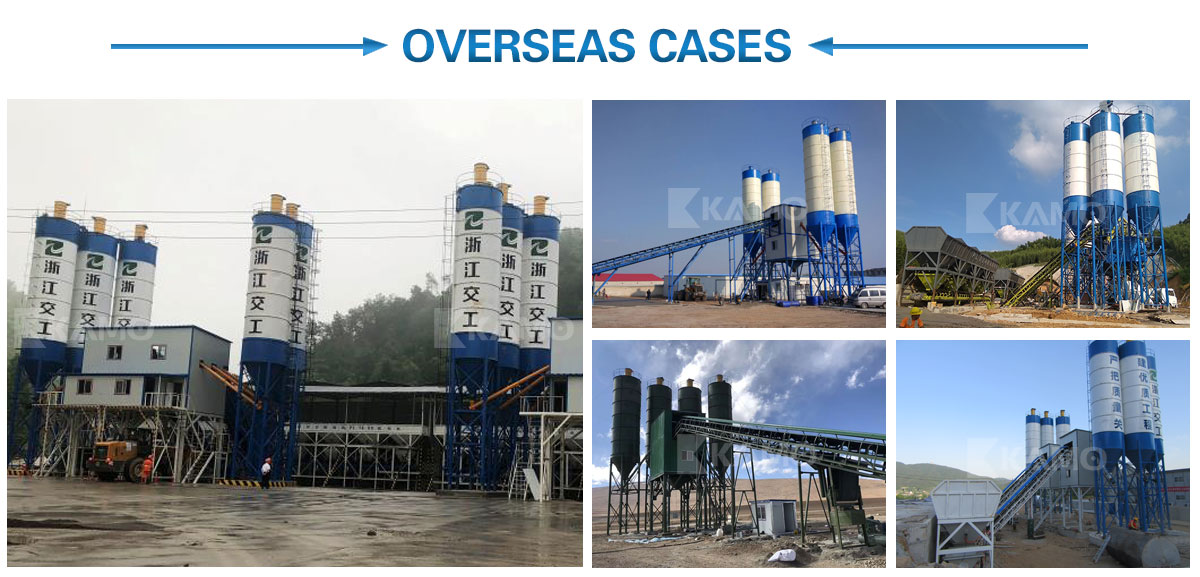

overseas cases

customer visit

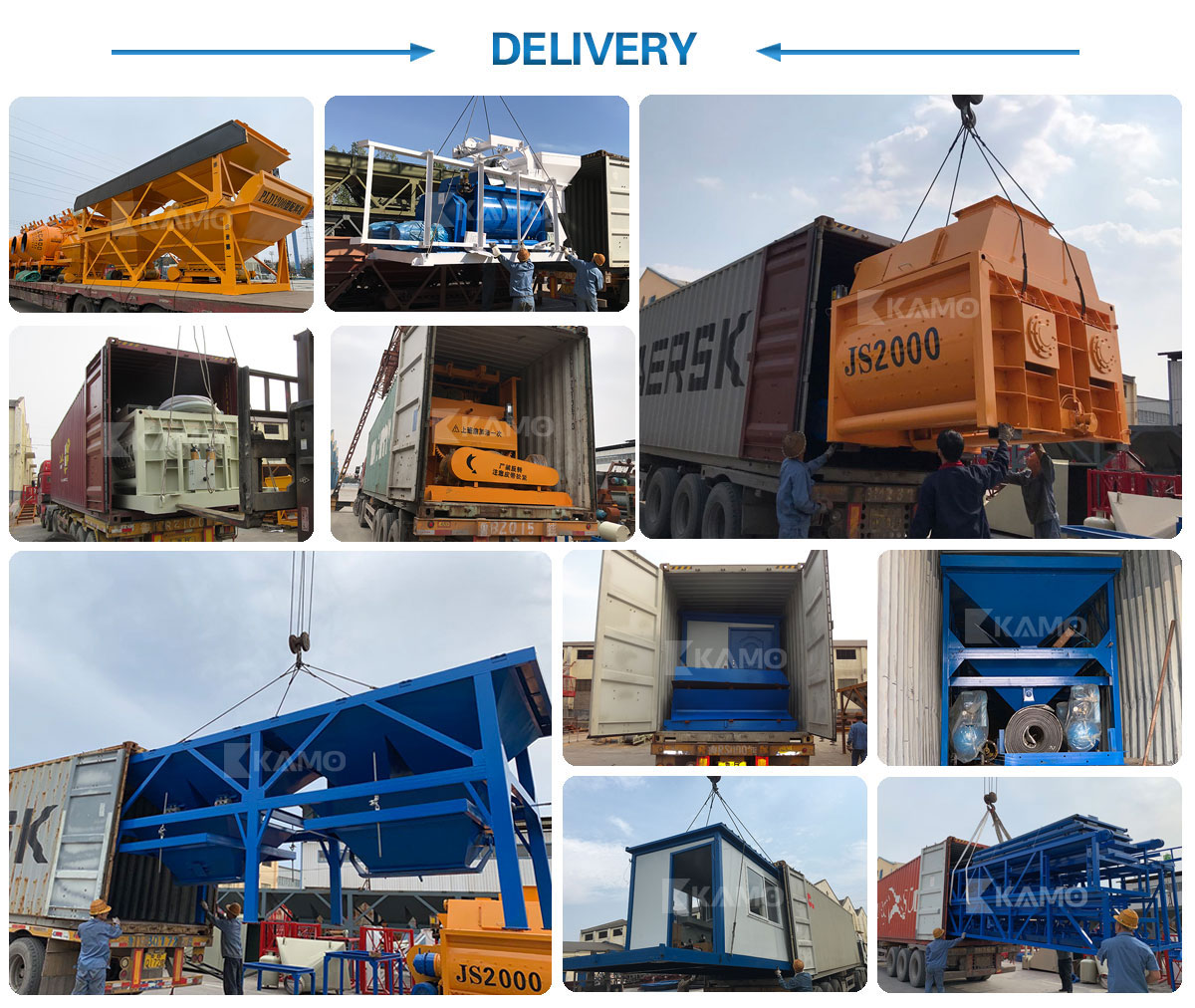

product delivery
