This series double shaft shredder use micro-computer(PC)automatic control. Equipped with start, stop, reversion and overload automatic reverse function. Also has low speed, high torque, low noise and others features.
APPLICATION
It is suitable for very big, thick and hard materials, such as: TV, washing machine, refrigerator shell, medium-sized pipe, pipe fitting, forklift pallet,tire,drum etc.
TECHNICAL PARAMETERS

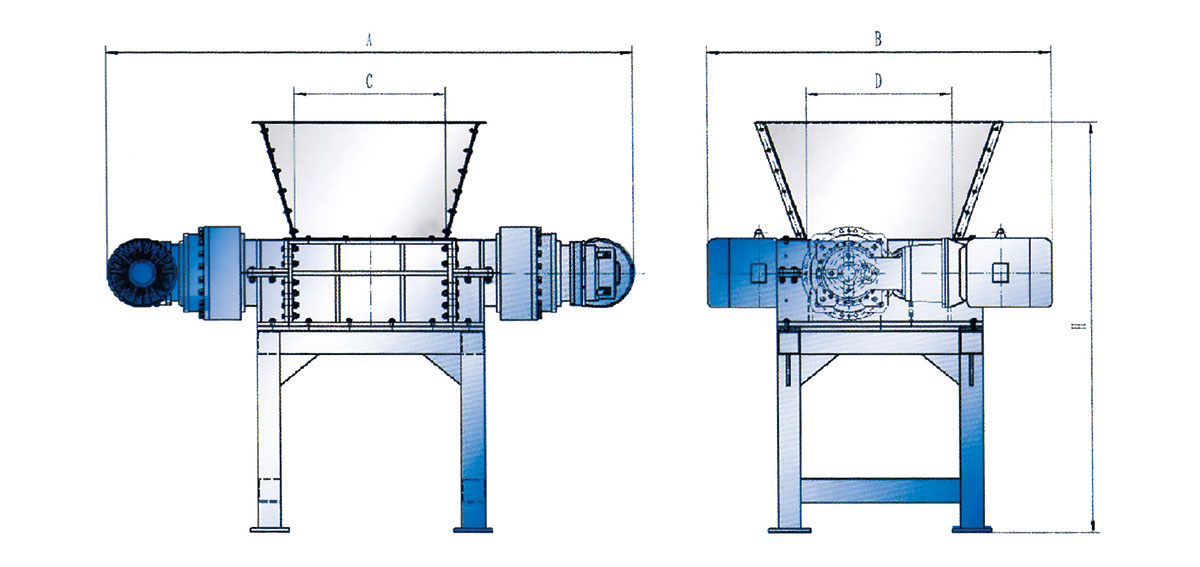

| Model | TL3280 | TL32100 | TL32120 | TL40100 | TL40130 | TL40160 |
| A(mm) | 3700 | 3880 | 3680 | 3420 | 3720 | 4020 |
| B(mm) | 1400 | 1400 | 1990 | 2240 | 2240 | 2240 |
| C(mm) | 804 | 1004 | 1204 | 1000 | 1350 | 1600 |
| D(mm) | 850 | 510 | 776 | 950 | 1000 | 950 |
| H(mm) | 2340 | 2370 | 2270 | 2670 | 2670 | 2670 |
| Blade turning diameter | φ284 | φ284 | φ284 | φ514 | φ514 | φ514 |
| Main shaft speed(r/min) | 15 | 15 | 15 | 15 | 14 | 11 |
| Rotor blade quantity(pcs) | 20 | 25 | 30 | 25 | 32 | 32 |
| Blade thickness | 40 | 40 | 40 | 40 | 40 | 50 |
| Machine power | 15+15 | 15+15 | 15+15 | 15+15 | 37+37 | 45+45 |
NOTE
1.The standard thickness of rotor blade is 40mm, also available in 15mm and 20mm, user can choose blade size based on final output size after crushing.
2.Rotor blade is single claw blade, if need double claw or multiple claw, please contact with our sales department. For shredding film or bag, please give indication.
