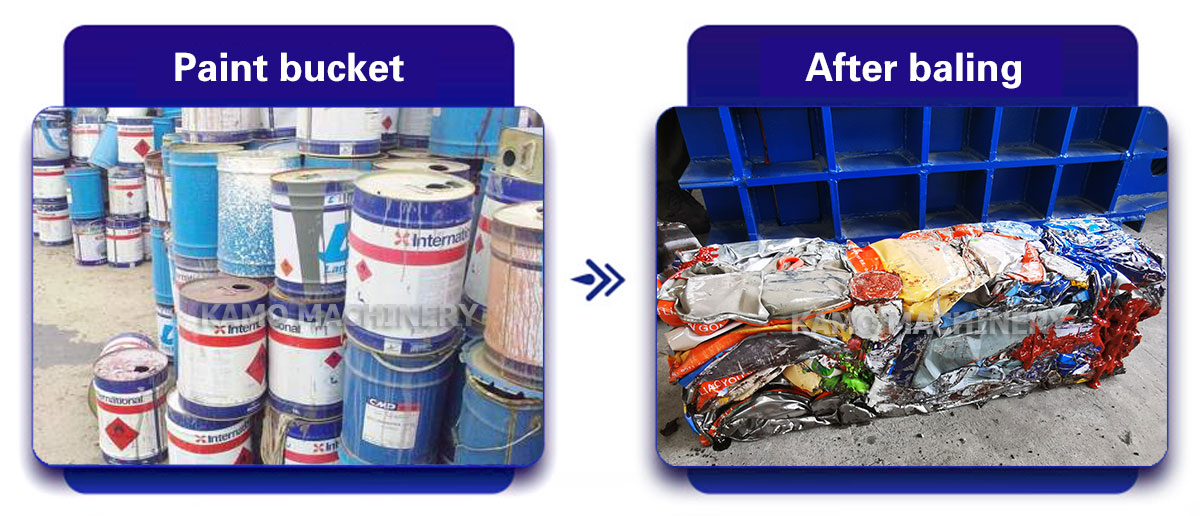

Hydraulic metal balers is mainly used in steel mills, recycling and processing industry and nonferrous and ferrous metals,ferrous metal smelting industry. Hydraulic baler can be a variety of metal scrap (steel shavings, scrap, scrap aluminum, scrap copper, scrap stainless steel and scrap car scrap, etc.) into a rectangular,octagonal body,cylinder and other forms of qualified charge,you can reduce Transportation and smelting costs,but also increase the speed of firing.
TECHNICAL PARAMETERS
| Model | Nominal thrust (KN) | Compression chamber size (mm) | Package size (mm) | Mass density (kg/m³) | Productivity (kg/h) | Single cycle time (sec) | Equipped with power (KW) | Out of package mode of operation |
| Y81-63 | 630 | 1000*600*500 | (180-250)*190*190 | ≥1800 | 500-1000 | 90 | 7.5 | 翻包、手动阀操作 |
| Y81-100 | 1000 | 1000*600*500 | (200-300)*200*200 | ≥1800 | 1000-1200 | 120 | 11 | |
| Y81-125 | 1250 | 1200*700*600 1150*700*600 | (150-400)*250*250 | ≥1800 | 1000-1500 | 120 | 11或15 | |
| Y81-160A | 1600 | 1600*1000*800 | (400-600)*350*350 (400-600)*400*400 | ≥1800 | 2000-3000 | 150 | 22 | 推包、手动阀操作 |
| Y81-160B | 1600 | 1600*1000*800 | (400-600)*400*400 (400-650)*400*400 | ≥1800 | 2000-3000 | 160 | 30 | |
| Y81-200A | 2000 | 1600*1000*800 | (400-700)*400*400 | ≥1800 | 2500-4000 | 160 | 30或37 | |
| Y81-200B | 2000 | 1800*1400*900 | (400-700)*400*400 | ≥1800 | 2500-4500 | 160 | 30或37 | 推包、PC半自动 |
| Y81-250A | 2500 | 2000*1400*900 | (400-700)*450*450 | ≥1800 | 3500-5000 | 160 | 40或60 | |
| Y81-250B | 2500 | 2000*1750*1200 | (400-700)*500*500 | ≥1800 | 3500-5000 | 160 | 60 | |
| Y81-315A | 3150 | 2000*1400*1200 | (400-700)*450*450 | ≥1800 | 3500-5000 | 160 | 60 |
REMARKS
1. All models with hydraulic drive,can choose manual or PLC automatic control.
2. The package delivery methods include turning over the package, pushing the package sideways, pushing forward the package, and manually taking the package.
3. A variety of models can choose: different pressures, material box size,mass size and shape.
4. Where there is no power supply, diesel engine can be equipped as power.
Note: The product box size and package size can be customized according to the actual needs of customers.
