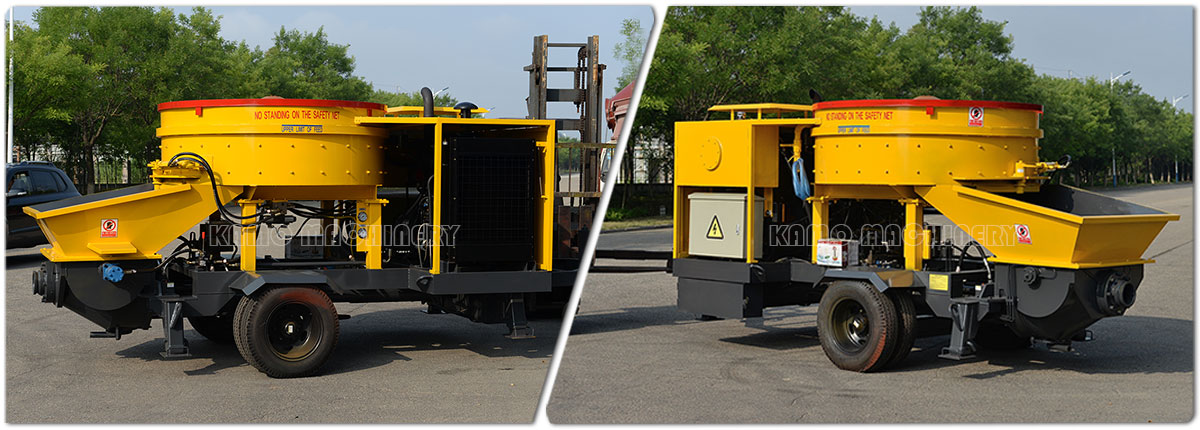

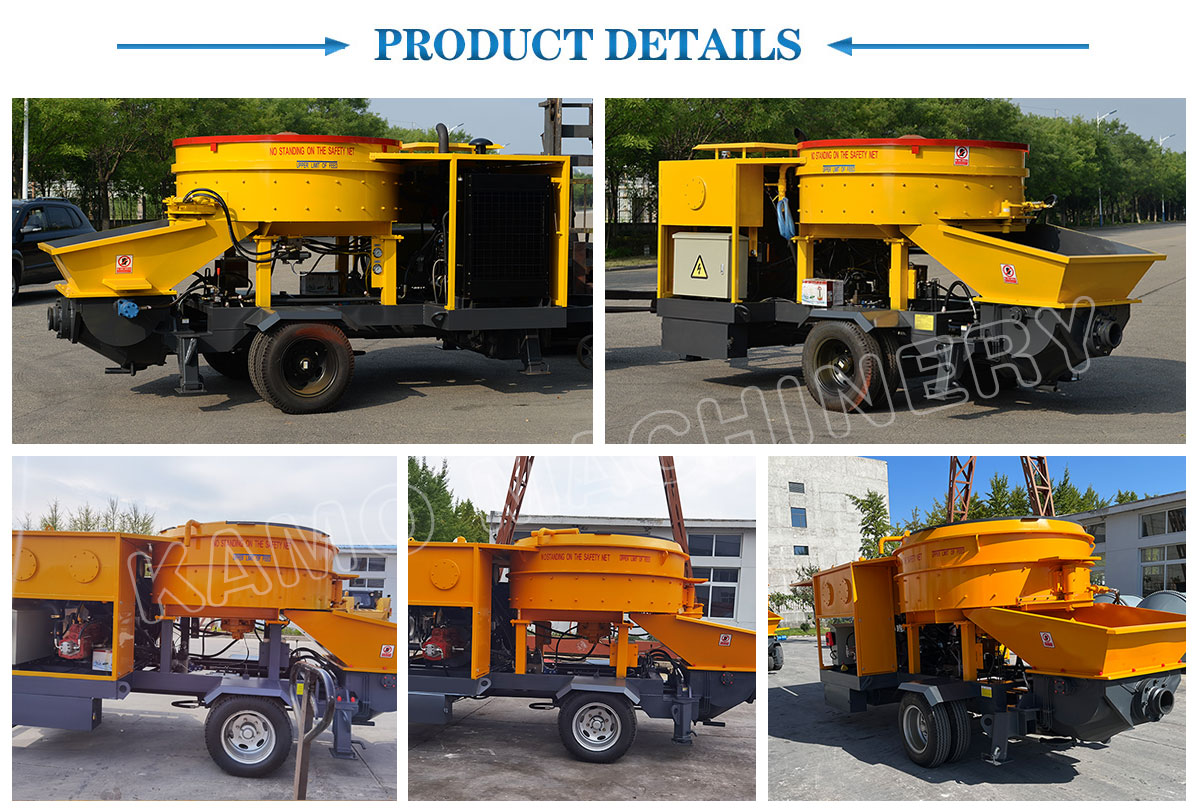

LHBT/R vertical concrete mixer pump

　　This series of products integrates a vertical shaft mixer and a delivery pump. Compared with the JBS series of mixer pumps, it has higher output efficiency, smaller size and is more convenient to move.

　　The mixer is driven by a hydraulic motor, which is small in size and high in torque, to avoid the phenomenon of large aggregates getting stuck and burning the motor. It can be rotated forward and reverse frequently to improve mixing efficiency.

　　The inner wall and bottom surface of the mixer are equipped with replaceable high wear-resistant lining plates, which extend the service life.

　　The loading height is low, and the loader is used to load directly, which is more efficient.

　　This series of products has electric motors and diesel engines to choose from.

LHBT/R vertical concrete mixer pump(图1)

TECHNICAL PARAMETERS

Model	LHBT40-75	LHBT50-75	LHBT40-75R	LHBT50-75R
Theoretical delivery capacity（m³/h）	30	36	36	44
Concrete delivery pressure（MPa）	9.7	8	9.7	8
Maximum conveying distance（m）vertical horizontal	140/500	100/400	140/500	100/400
Power form	electric motor	electric motor	diesel engine	diesel engine
Motor power/diesel engine（kw）	55	55	82	82
Delivery cylinder bore × stroke（mm×mm）	180×1000	200×1000	180×1000	200×1000
Main cylinder bore x stroke（mm×mm）	100×1000	100×1000	100×1000	100×1000
Maximum aggregate size（mm）	40	40	40	40
Discharge port diameter（mm）	150	150	150	150
Feeding capacity（m³）	1.2	1.2	1.2	1.2
Feeding height（mm）	2150	2150	2150	2150
Mixer discharge capacity（m³）	0.8	0.8	0.8	0.8
Mixer productivity（m³/h）	20-25	20-25	20-25	20-25
Length × Width × Height（mm）	3700×2200×2150	3700×2200×2150	4100×2200×2300	4100×2200×2300
Host quality（kg）	4200	4500	4500	4700
