HZS180 CONCRETE BATCHING PLANT

　　The HZS180 concrete mixing plant is designed and manufactured by Zhengzhou KAMO Machinery Co., Ltd. It has the automatic feeding function of the belt conveyor. It is a standard commercial concrete mixing plant with a productivity of 90m3/h. Suitable for large-scale commercial concrete production plants, construction sites, precast plants, highway maintenance, bridge construction, etc.

　　The mixer adopts the MAO series double-horizontal-shaft forced mixer, which adopts the latest design ideas of electronic weighing, microcomputer control, digital display and other control technologies. The electronic weighing has buffer devices and automatic compensation functions, and the measurement accuracy is high. The aggregate feeding system adopts herringbone belt feeding and has double-sided inspection walkways. There is an aggregate storage bin above the mixer, which increases the feeding speed of aggregates, thereby greatly improving the production efficiency of concrete. It is an ideal equipment for the majority of construction units to produce high-quality standard concrete.

HZS180 CONCRETE BATCHING PLANT

TECHNICAL PARAMETERS

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS100	HZS120	HZS180
Theoretical capacity （m³/h）	25	35	50	60	75	90	100	120	180
Mixer model	JS500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000	JS2000	JS3000
Mixing motor power （kw）	1×18.5	1×30	2×18.5	2×18.5	2×30	2×30	2×37	2×37	2×55
Number of kinds of aggregates (species)	3	3	4	4	4	4	4	4	4
Max. aggregate sizes （mm）	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80
Discharge height（mm）	3.8	3.8	4.2	4.2	4.2	4.2	4.2	4.2	4.2
Maximum weighing value of aggregate（kg）	1200	2000	4000	4000	5000	5000	5000	5000	8000
Maximum weighing value of cement	1200	1200	1200	1200	1500	1500	1500	1500	1800
Maximum weighing value of coal ash（kg）	500	500	600	600	800	800	800	800	1000
Maximum weighing value of water（kg）	500	500	600	600	700	700	700	700	800
Maximum weighing value of additive（kg）	50	50	50	50	50	50	50	50	80
一 type overall dimension（L×W×H）（mm）	11360×8280 ×7866	11360×8280 ×7866	37000×14000 ×10828	37000×14000 ×10828	35000×10000 ×9900	60400×16110 ×12284	64000×17000 ×12484	64000×17000 ×12484	74000×13540 ×11850
L-type overall dimension（L×W×H）（mm）	11360×8280 ×7866	11360×8280 ×7866	40097×20710 ×10828	40097×20710 ×10828	26174×17369 ×9900	47620×21148 ×12284	47000×21000 ×12484	47000×21000 ×12484	53800×25400 ×11850

MAIN FEATURE

　　1.The modular structure is very convenient for installation and disassembly, and the cost is low.

　　2.The concrete mixing host adopts high-quality and efficient MAO4500/3000 twin-shaft forced mixer, hydraulic discharge, dual motors provide strong power, high wear-resistant mixing blades and liners, precise shaft end seals, high-quality bearings, good quality and efficiency High and long life.

　　3.There is an aggregate storage bin above the mixer, and the belt is loaded to the storage bin, which greatly improves production efficiency.

　　4.The aggregate is batched by the PLD3200 batching machine, with high measuring accuracy and high output.

　　5.Cement scale, water scale and admixture scale are all electronically weighed with S-type load cell, with high batching accuracy.

　　6.Adopting the water supply system and the principle of water pump boosting, the water flow speed is accelerated and the spray is even.

　　7.The main components of the electrical control system are all well-known brands such as Siemens, Schneider or Chint, with reliable performance and easy operation; the electrical control room is also equipped with printers, air conditioning, and lighting functions.

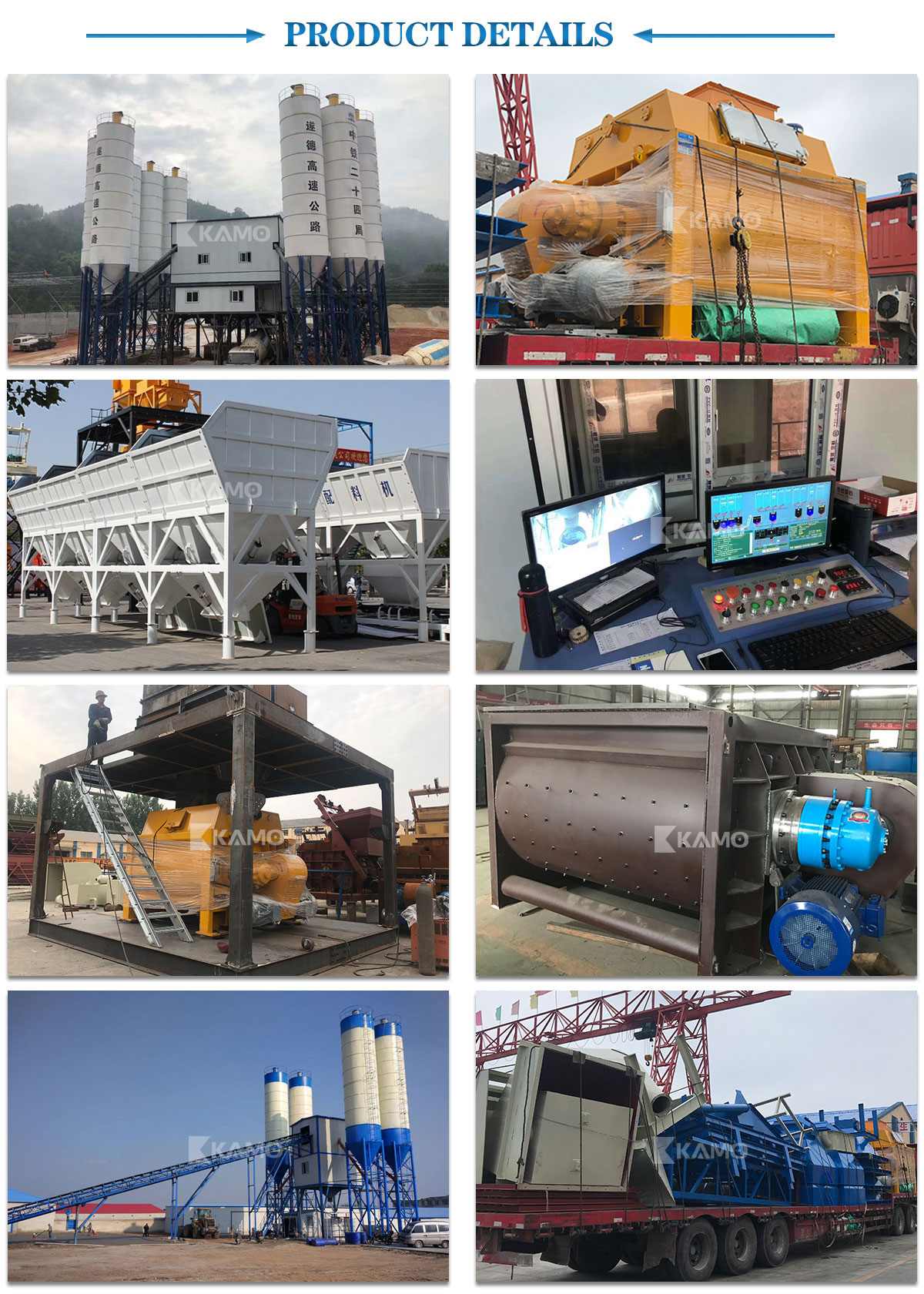

product details

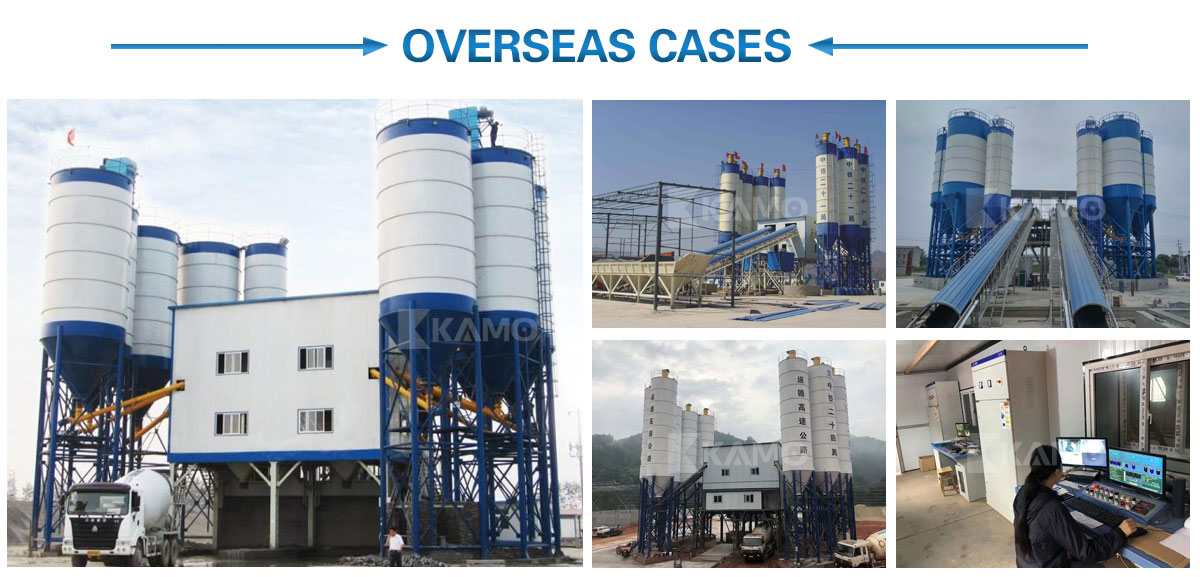

overseas cases

customer visit

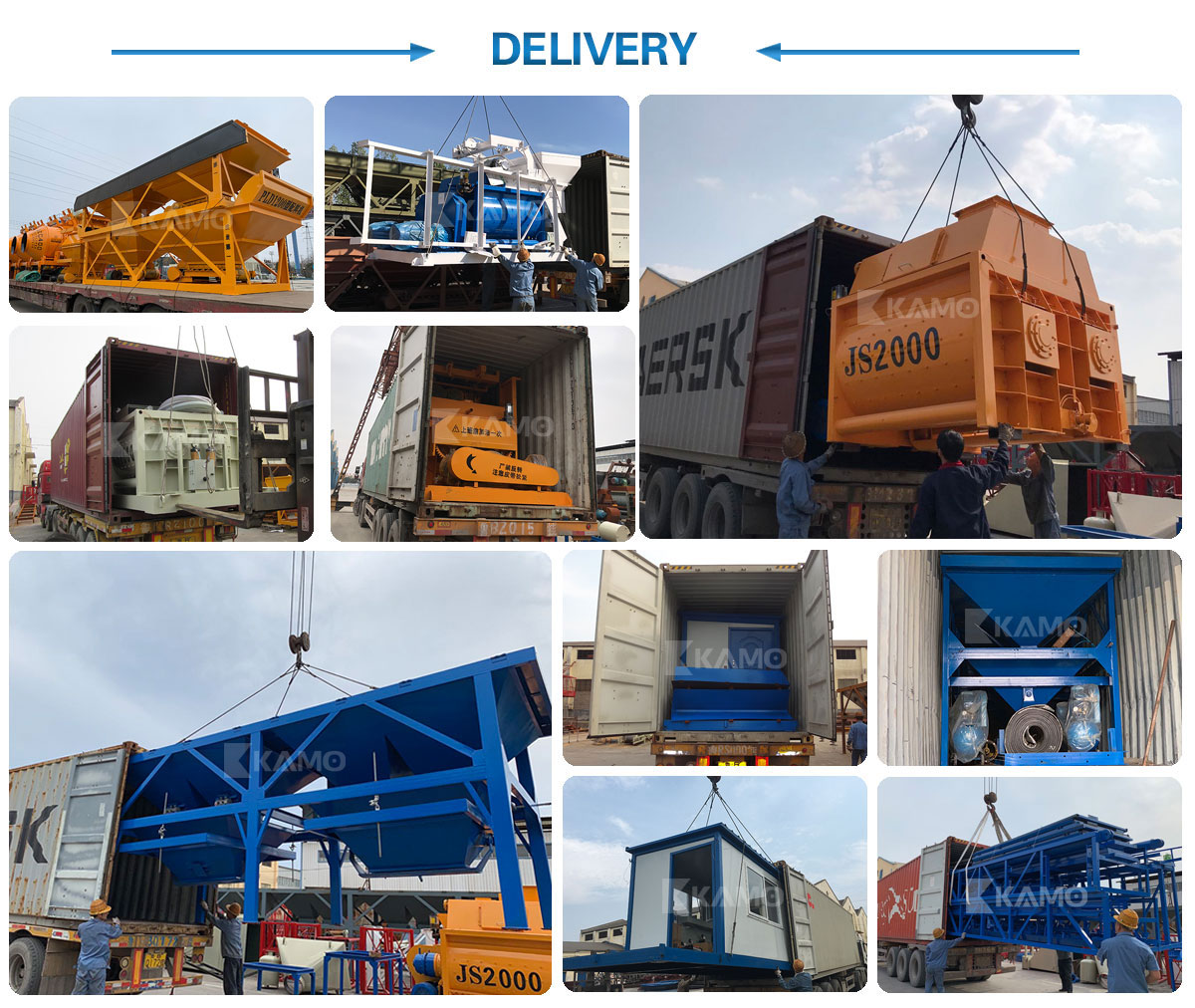

product delivery
