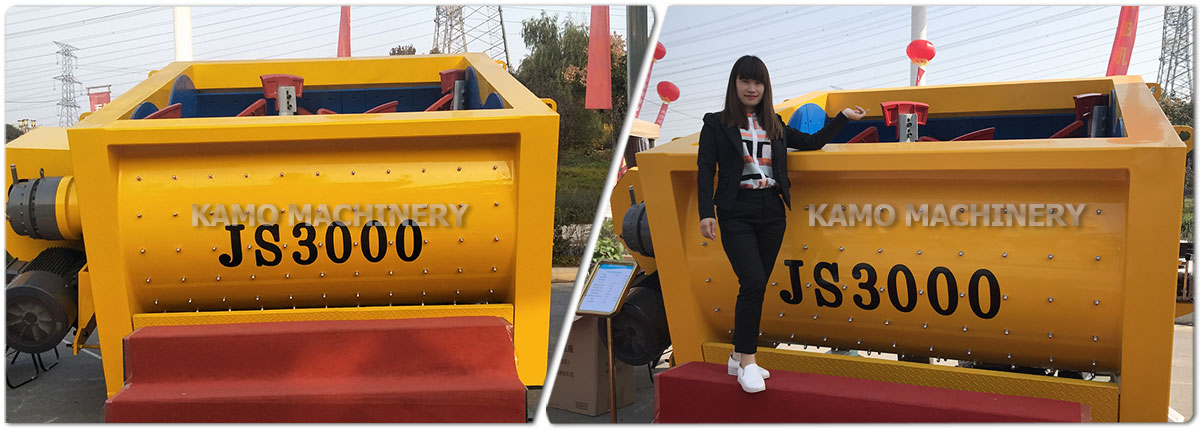

InstagramThe JS3000 series compulsory two-horizontal concrete mixer discharges 3 cubic meters each time. It is also called a 3-square concrete mixer. The cycle period is 60S. The main machine of the 180 mixing station uses this machine. The JS3000 compulsory mixer is a large model Concrete mixing machinery.
The JS series concrete mixer is a double-horizontal-shaft forced mixer. This machine has the dual advantages of a single machine independent operation and a simple concrete mixing plant with the PLD series batching machine. It can also provide a supporting host for the mixing station, which is suitable for various large , Small and medium-sized prefabricated component plants and industrial and civil construction projects such as highways, bridges, water conservancy, wharves, etc. It can mix dry hard concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortars. It is a high-efficiency machine It has a wide range of applications.
This series of products have reasonable design structure, novel layout, convenient use and maintenance, and can be modified according to user's special requirements to meet user needs.
JS3000 CONCRETE MIXER VIDEO
TECHNICAL PARAMETERS
| Model | JS500 | JS750 | JS1000A | JS1500A | JS1000B | JS1500B | JS2000 | JS3000 |
| Discharge capacity（L） | 500 | 750 | 1000 | 1500 | 1000 | 1500 | 2000 | 3000 |
| Feeding capacity（L） | 800 | 1200 | 1600 | 2400 | 1600 | 2400 | 3200 | 4800 |
| Theoretical productivity（m³/h） |
≥25 |
≥35 | ≥50 | ≥75 | ≥60 | ≥90 | ≥120 | ≥150 |
| Overall quality（kg） | 4000 | 5500 | 8700 | 11130 | 8700 | 6500 | 7500 | 9200 |
| Stirring motor power（KW） | 18.5 | 30 | 37 | 30 | 37 | 30 | 37 | 55 |
| Increase motor power（KW） | 5.5 | 7.5 | 15 | 18.5 | / | / | / | / |
| Water pump motor power（KW） | 1.1 | 1.5 | 3 | 3 | / | / | / | / |
| Hoisting motor power（KW） | 5.5 | 7.5 | 15 | 18.5 | / | / | / | / |
| Mixing blade speed（r/min） | 31 | 31 | 19.5 | 19.5 | 19.5 | 24.5 | 24.5 | 21 |
| Discharge height（m） | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8-4.2 | 3.8 | 4.2 |
PRODUCT ADVANTAGES
The JS3000 compulsory mixer is a large-scale concrete mixing machine that provides a supporting host. It is suitable for various large and medium prefabricated component plants and large industrial and civil construction projects such as highways, bridges, water conservancy, and wharves. JS3000 concrete mixer can be combined with a certain batching machine model to form a large-scale commercial concrete mixing plant and a double concrete mixing plant, with powerful power and high production efficiency.
WORKING PRINCIPLE

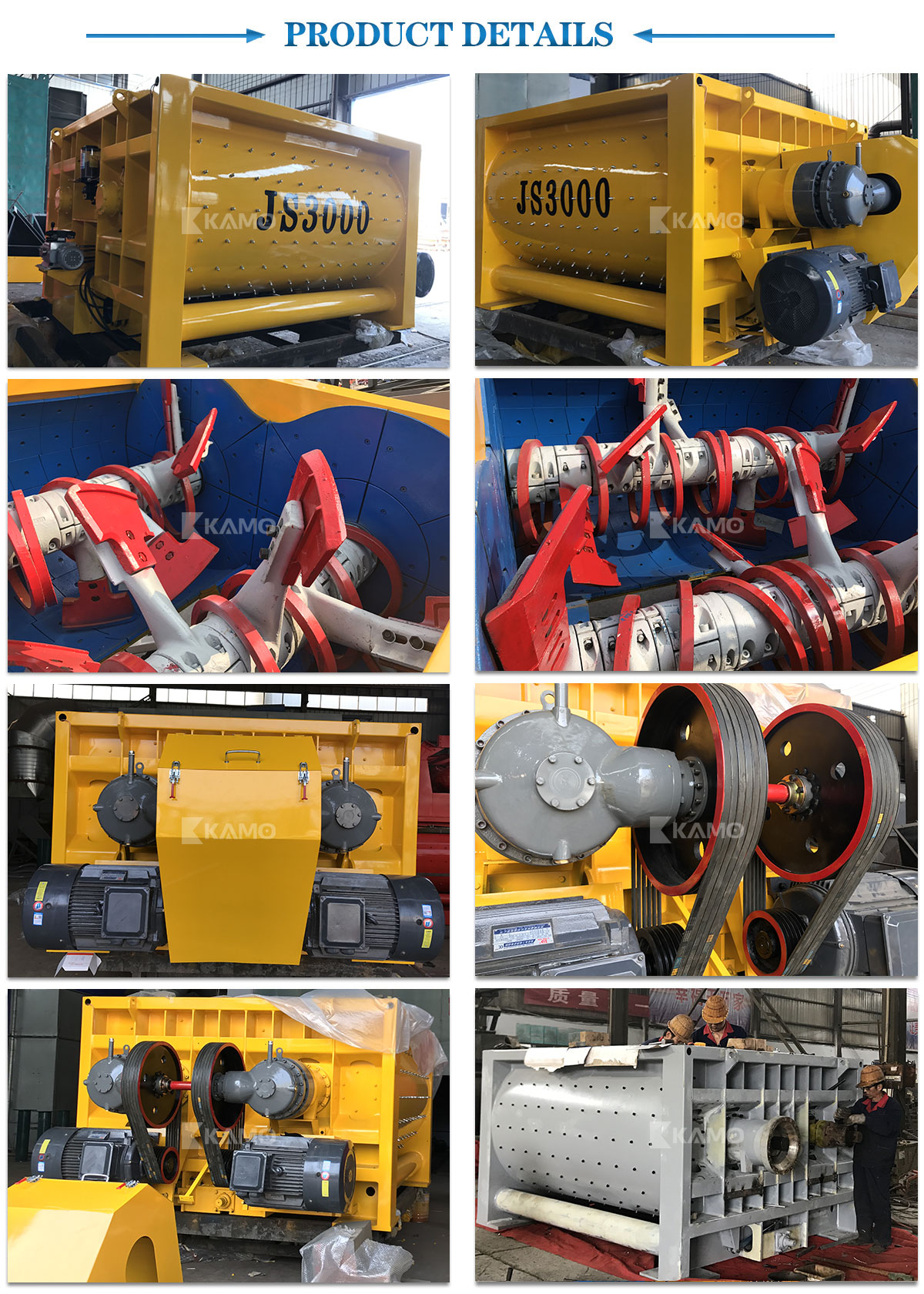

JS3000 concrete mixer is composed of five systems: concrete mixer mixing system; concrete mixer feeding system; mixer water supply system; mixer discharge system; mixer discharge system. The mixer starts to run by the direct-connected planetary cycloidal pinwheel reducer of the mixing system, open gear, mixing tank, mixing device, oil supply device, etc., and then in the parts of feeding, mixing, unloading, water supply, and electricity. Sand, stones, and cement are sent to the mixer, the mixing arm inside the mixer, and the rotation of the blades mix the materials evenly, and finally dump them in the dump truck or concrete mixer truck.
