HYDRAULIC ALLIGATOR SCRAP METAL SHEAR

inquire about this equipment

　　Waste materials recycling processing industry,small and medium-sized steel mills on a variety of scrap metal cold cut.

APPLICATION

　　Applicable materials: round steel,square steel,channel steel,angle steel,l-beam,steel,steel,bicycles,steel,frame and so on.

Before and after shearing

TECHNICAL PARAMETERS

Model	Maximum shear force(T)	Cutting length(mm)	Maximum cutting size (mm)	Shear frequency (min)	Motor(KW)
Q43-63	63	600	30*30/φ35	8-12次	7.5
Q43-100A	100	600	35*35/φ40	8-12次	11
Q43-100B	100	1000	35*35/φ40	8-12次	15
Q43-120	120	600	40*40/φ45	8-12次	15
Q43-160	160	600	45*45/φ50	6-10次	18.5
Q43-200	200	800	55*55/φ65	6-10次	22
Q43-250	250	1000	65*65/φ70	6-8次	2*15
Q43-315	315	1200	70*70/φ80	6-8次	2*18.5
Q43-400	400	1500	80*80/φ80	5-8次	2*22

PRODUCT FEATURES

　　1. The hydraulic drive,safe and reliable performance,easy to operate.
　　2. The cutting force from 63 tons to 400 tons of eight grands,suitable for different sizes of different user requirements.In this case.
　　3. installation does not need to use the foot screw,no power can be used for diesel power.

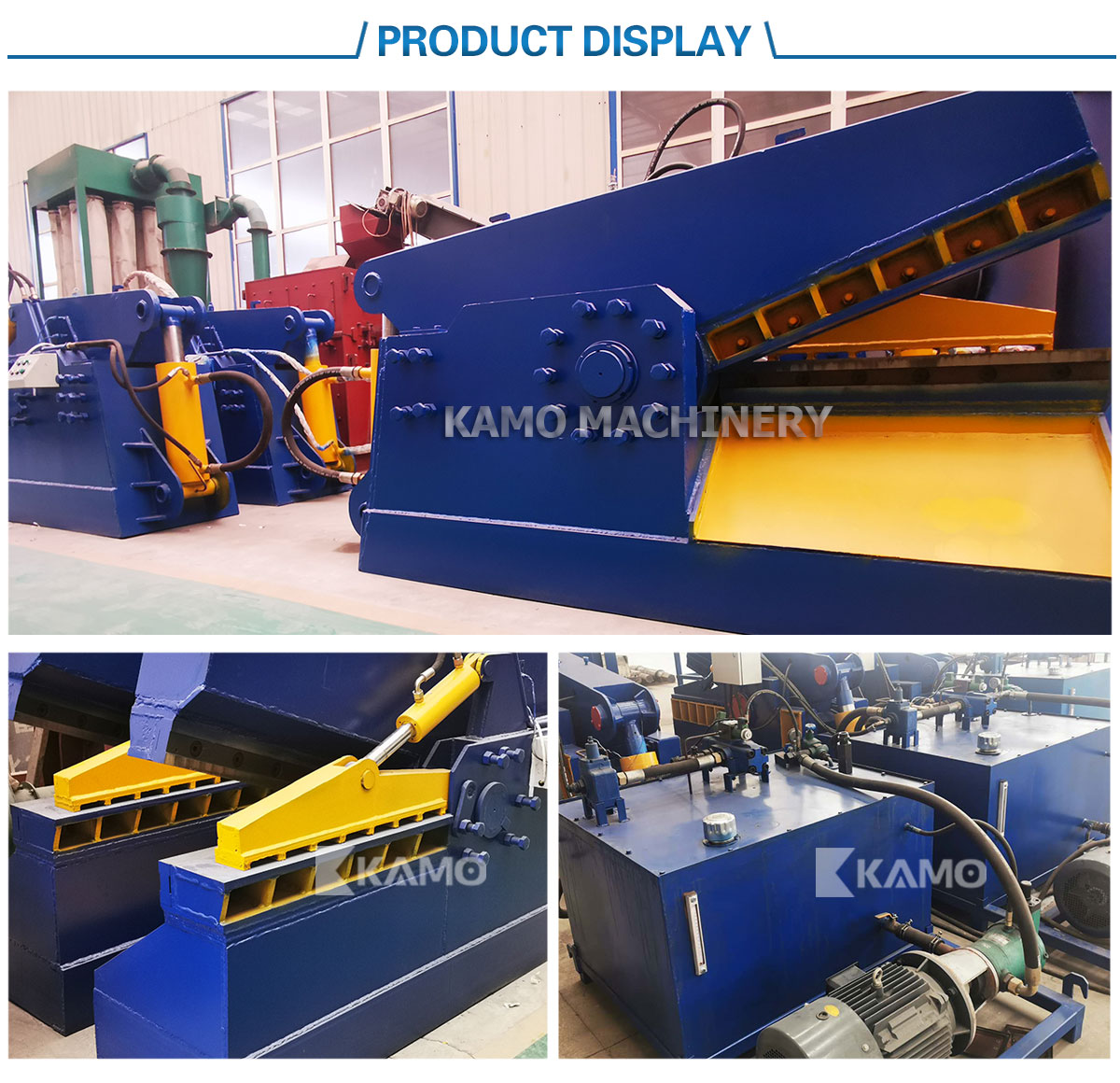

product display
