YHZS35 Mobile Concrete Batching Plant, Price, Supplier-KAMO

YHZS35 MOBILE CONCRETE BATCHER

　　The mobile concrete mixing plant is developed on the basis of the fixed concrete mixing plant. It is flexible to move, quick to disassemble, small footprint, easy to store, simple to manage, high degree of automation, and close to the construction site. It is widely used in roads, bridges, dams, airports and other on-site mobile sites.

25m³/h-75m³/h MOBILE CONCRETE BATCHER

TECHNICAL PARAMETERS

Model		YHZS25	YHZS35	YHZS50	YHZS75
Theoretical productivity（m³/h）		25	35	50	75
Mixer model		JS500	JS750	JS1000	JS1500
Mixing motor power（kw）		24.75	2×15	37kw/2×22kw	2×30kw
Number of kinds of aggregates (species)		3	4	4	4
Max. aggregate sizes（mm）		≤80	≤80	≤80	≤80
Discharge height（m）		4.2	4.2	4.2	4.2
Total power（kw）		56.5	76	88	112
Trailing speed（km/h）		≤40	≤40	≤40	≤40
Overall dimension（L×W×H）（mm）	Transportation status	14824×2100×4300	14824×2100×4300	37000×14000×10828	35000×10000×9900
Overall dimension（L×W×H）（mm）	Working status	14800×3318×7488	14800×3318×7488	40097×20710×10828	26174×17369×9900

MAIN FEATURE

　　The modular structure is very convenient for installation and disassembly, and the cost is low.

　　The main concrete mixer is a double-shaft forced mixer with good quality and high efficiency.

　　The aggregate is prepared by batching machine, with high measuring accuracy and high output.

　　The proportioning of cement, water supply, and admixtures is weighed by electronic scales, with high precision.

　　Adopting the water supply system and the principle of water pump boosting, the water flow speed is accelerated and the spray is even.

　　The main components of the electrical control system are all domestic well-known brands with reliable performance and easy operation. It also has printing functions and air conditioning.

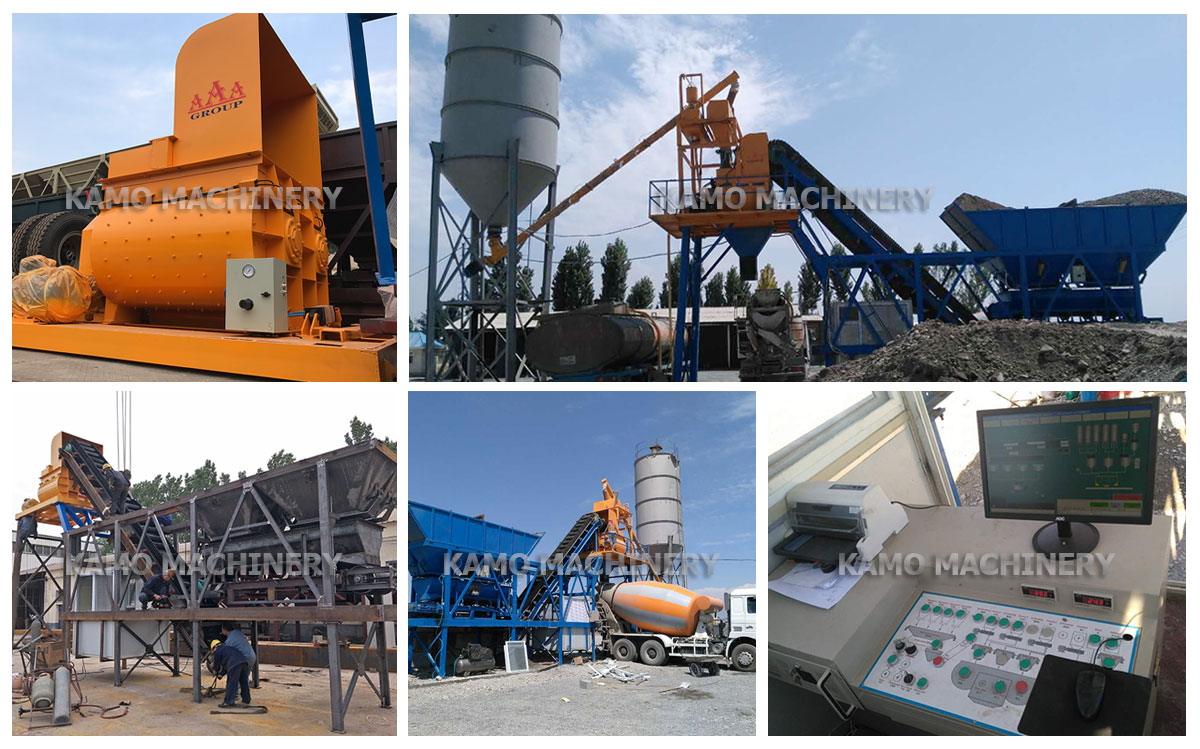

customer visit
