COPPER ALUMINUM WATER TANK AND RADIATOR SHREDDING PRODUCTION LINE (KPS2016)

COPPER ALUMINUM WATER TANK AND RADIATOR SHREDDING PRODUCTION LINE

inquire about this equipment

　　Shred Copper aluminum water tank and Industrial radiator by vertical hammermill shredder, recycle copper and aluminum, turning waste into treasure for scrap yards.

APPLICATION

　　This shredding production line mainly recycle copper and aluminum from the following scraps:

Copper aluminum water tank
Radiator
Motor rotor
Aluminum engine
Car rim
Baled aluminum

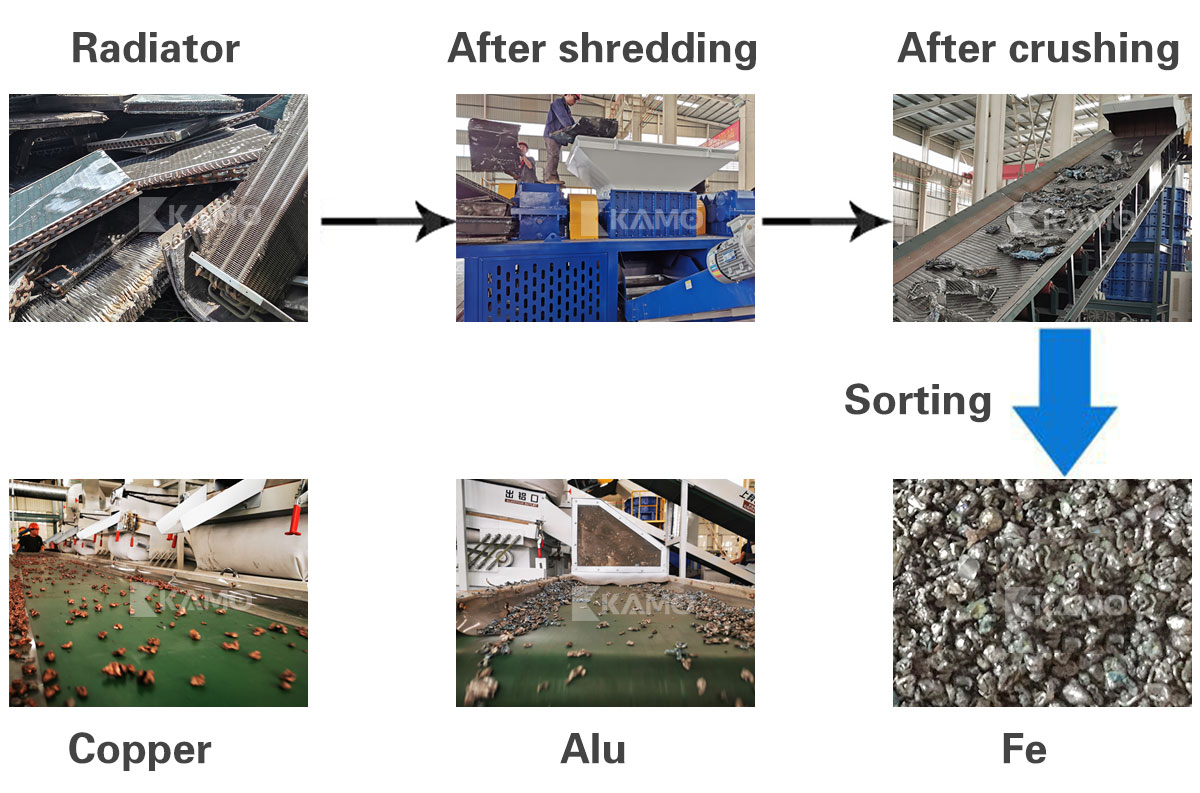

　　Shredding scraps by vertical shredder, recycling iron by magnetic separator, separate and recycle copper and aluminum finally.

TECHNICAL PARAMETERS

Model	Rotor diameter(mm)	Feed Size(mm)	The particle size(mm)	Processing capacity(t/h)	Power(kw)	Dimensions(L×W×H)(mm)
KPS2016	1600	1100×1100	≤200	10	250-315	4600×2200×4700

CONFIGURATION

Copper Aluminum water tank and Radiator shredding production line includes the following :
　　1. Infeeding belt conveyor
　　2. Vertical shredder
　　3. Vibrating feeder
　　4. Magnetic discharging conveyor
　　5. Discharging belt conveyor
　　6. Dust collector
　　7. Copper Aluminum separation system

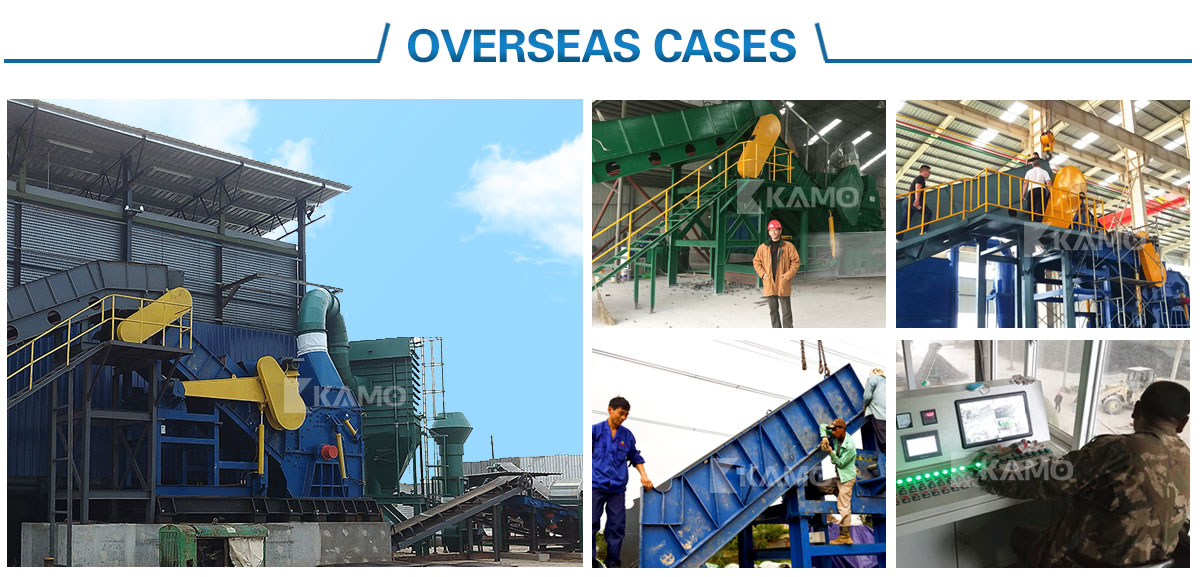

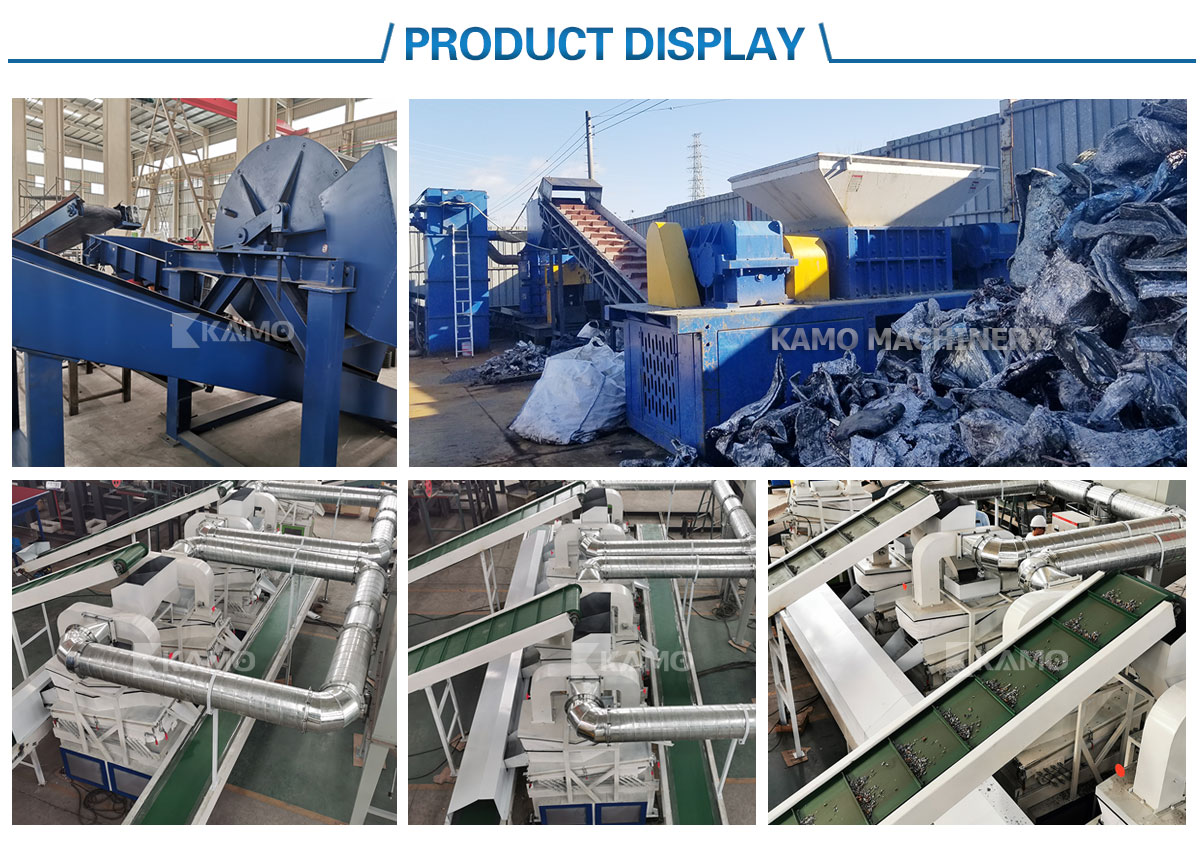

product display overseas cases

customer visit

delivery

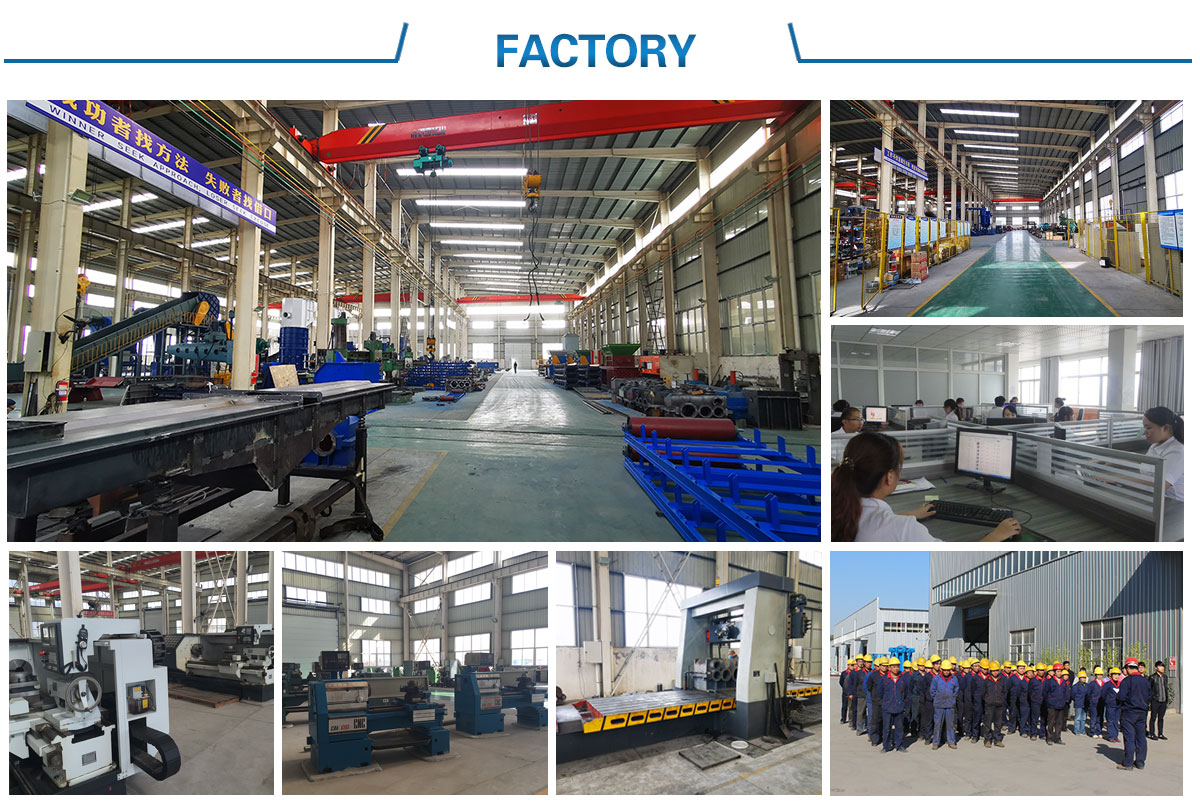

factory
