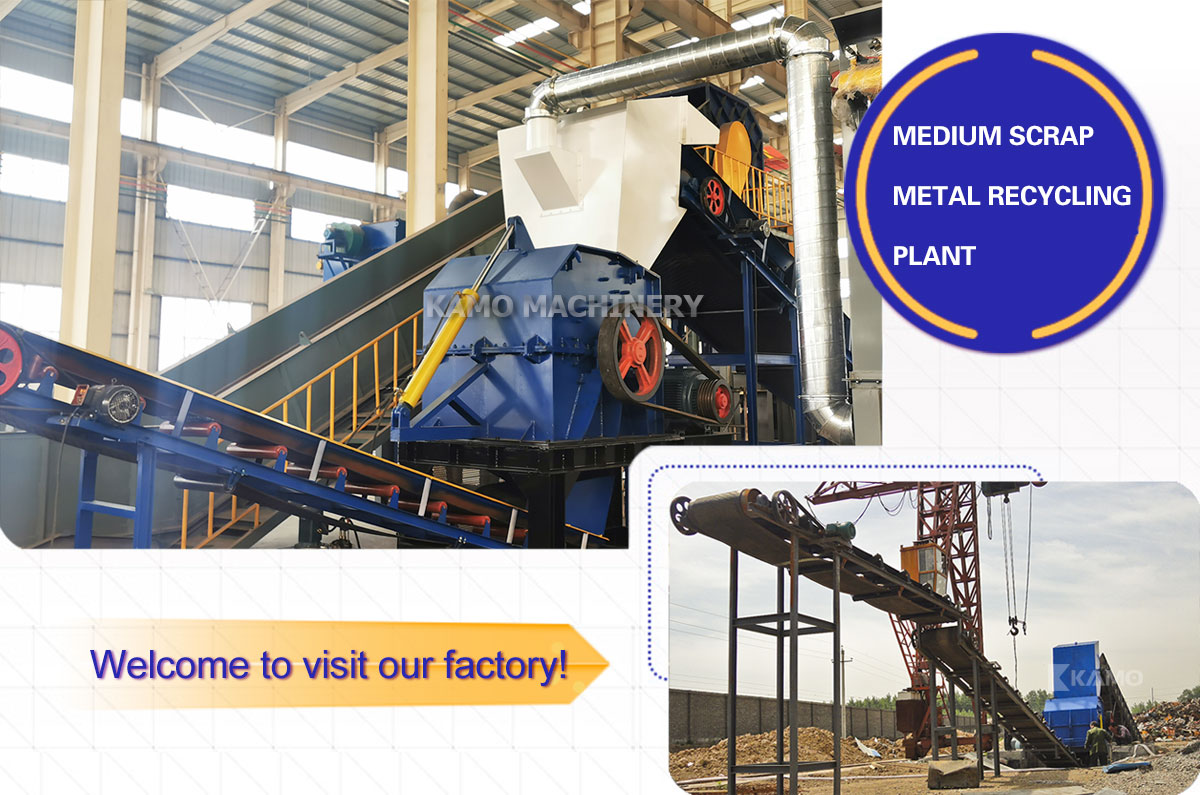

KAMO PS series scrap metal shredding line, shred medium scrap metals to get 99.5% pure steel/iron with affordable and economic recycling solutions.
APPLICATION
We offer medium scrap metal recycling plant on the market with affordable investment and high recycling ratio, most of scrap materials are medium light as following:
Household appliance
Medium light metal furniture
Metal door & window frame
Bicycles, motorcycle cover
Steel tiles
Big metal painting bucket

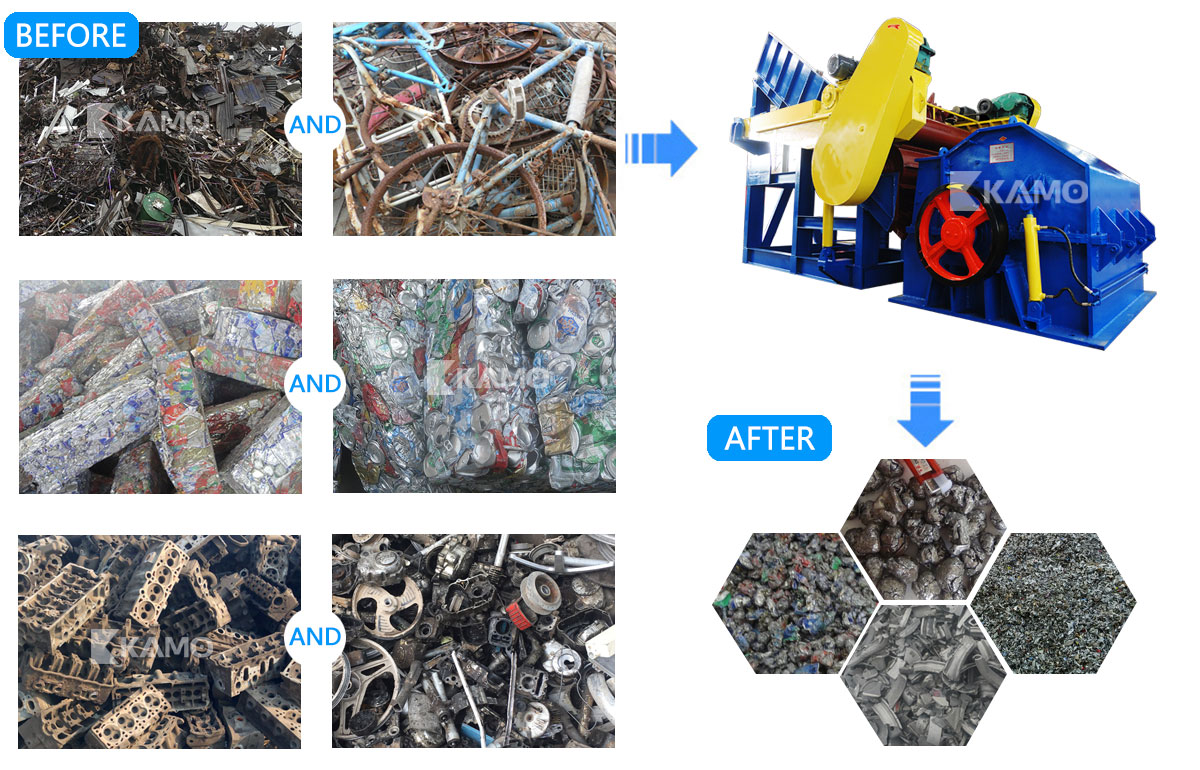

Size of final products after shredding depends on the hole size of sieve plate, 40-160mm is the popular output size of medium scrap metal recycling plant for steel mills, we can customize the hole size of sieve plate as our customer's needs. Final Products are around 1.2tons/m3, recyclable rate is more than 90%, and get 99.5% pure steel/iron. With economic and affordable investment, KAMO medium scrap metal recycling plant can be applied widely in medium scrap yards and steel works.
TECHNICAL PARAMETERS
| Model | Feed Opening Size(mm) | Motor Power(kw) | Discharge size adjustment(mm) | Capactity(t/h) | Overall Dimension |
| PS1280 | 1200 | 75-110 | 40-120 | 1.5-3 | 3200×2100×3300 |
| PS1210 | 1200 | 110-200 | 40-120 | 3-5 | 4800×2100×3300 |
| PS1014 | 1200 | 110-200 | 40-120 | 3-5 | 2400×1900×2100 |
| PS1214 | 1200 | 200-315 | 40-120 | 4-6 | 2400×2300×2100 |
| PS1415 | 1400 | 200-500 | 40-120 | 5-8 | 2800×2600×2900 |
| PS1680 | 1600 | 132-200 | 40-120 | 3-5 | 2800×2600×3800 |
| PS1690 | 1600 | 260-400 | 50-200 | 5-8 | 2900×2600×4000 |
| PS1614 | 1600 | 315-500 | 50-160 | 6-10 | 2900×2700×2300 |
| PS1815 | 1800 | 400-500 | 50-200 | 8-12 | 2600×3200×2300 |
CONFIGURATION
Our PS series scrap metal recycling plant includes the entire line of equipment :
1. Feeding belt conveyor
2. Hammermill shredder (with optional pre-press machine)
3. Discharging belt conveyor with magnetic roller
4. Discharging belt conveyor (for final pure steel/iron)
