Aluminum Window Frame Shredding Production Line, PS1680 Crushing Production Line-KAMO

ALUMINUM WINDOW FRAME SHREDDING PRODUCTION LINE (PS1680)

ALUMINUM WINDOW FRAME SHREDDING PRODUCTION LINE

inquire about this equipment

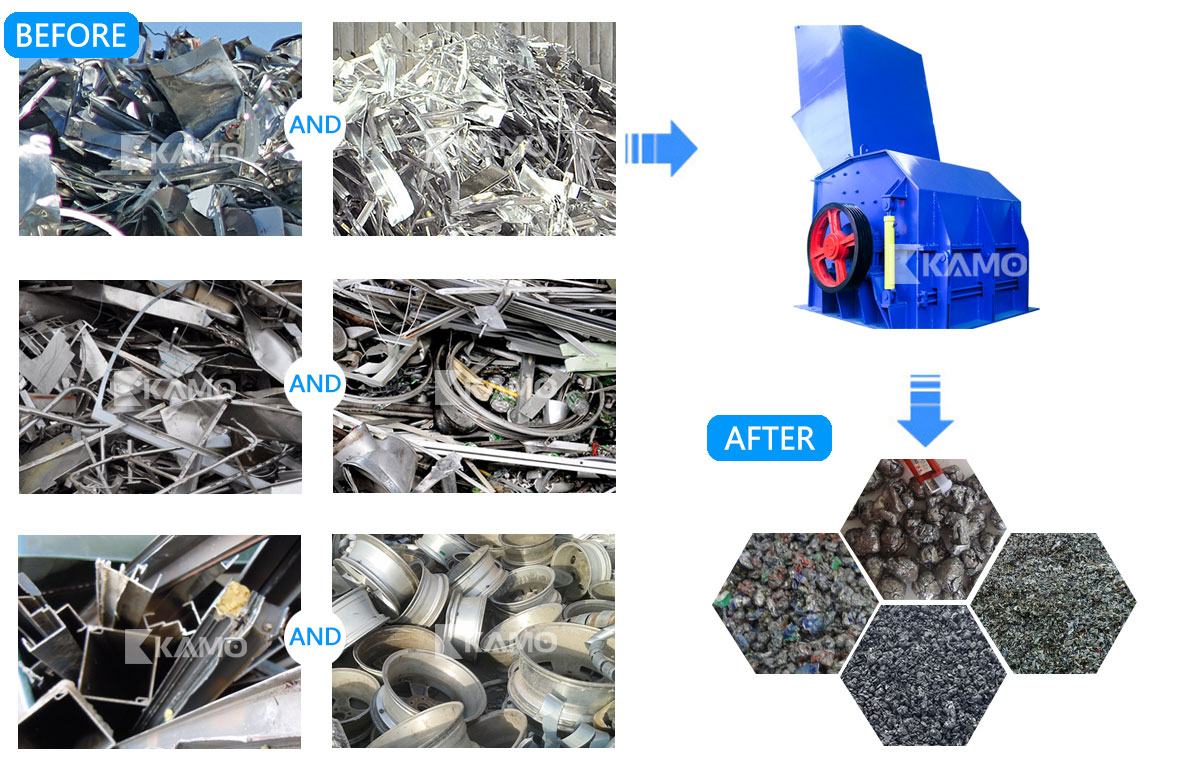

　　Aluminum window frame can be shredded and recycle aluminum, as this kind of materials are light and large, it is suitable for using horizontal metal hammermill, another name is metal crusher.

APPLICATION

　　Horizontal metal shredding production line has big crushing cavity in the shredder, it is better to process the light and large scrap metal materials with higher efficiency, such as:

Aluminum window frame
Big painting drum
Scrap bicycle
Waste car door

TECHNICAL PARAMETERS

Model	Feed Opening Size(mm)	Motor Power(kw)	Discharge size adjustment(mm)	Capactity(t/h)	Overall Dimension
PS1680	1600	132-200	40-120	3-5	2800×2600×3800

CONFIGURATION

Aluminum window frame shredding production line includes shredding system, separation system, control system,etc. The detailed configuration is as following:
　　1. Infeeding conveyor
　　2. Horizontal metal hammermill (or named metal crusher)
　　3. Discharging belt conveyor with magnetic separator
　　4. Final discharging belt conveyor
　　5. Dust collector (optional)　　

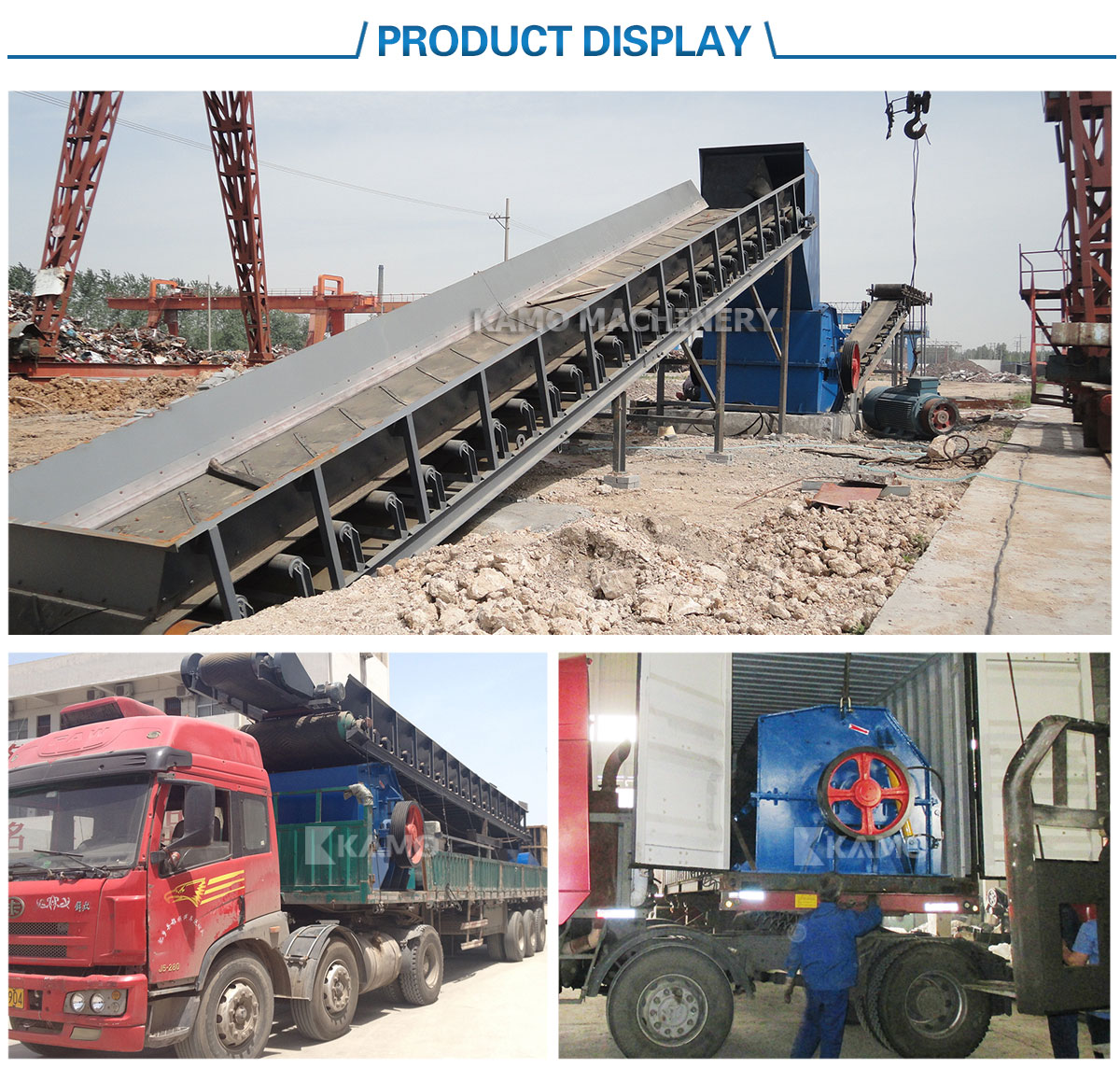

product display

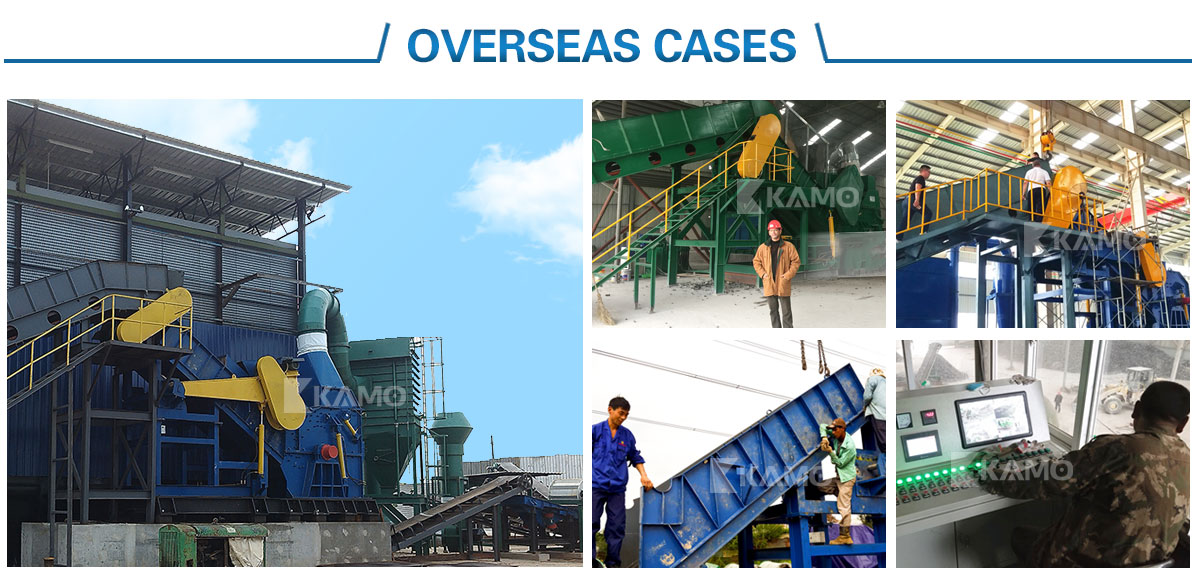

overseas cases

customer visit

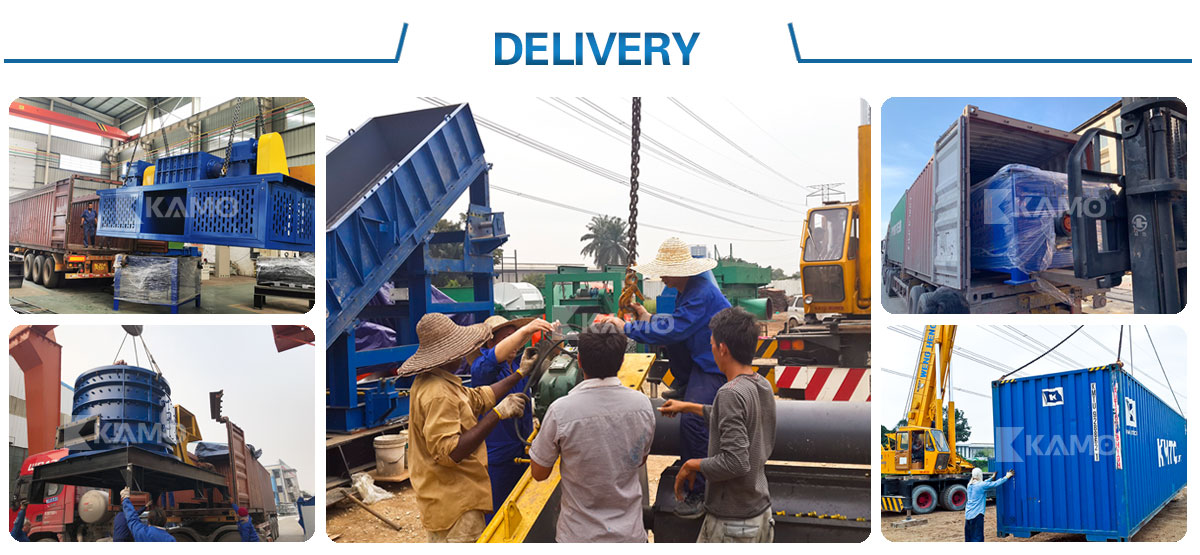

delivery

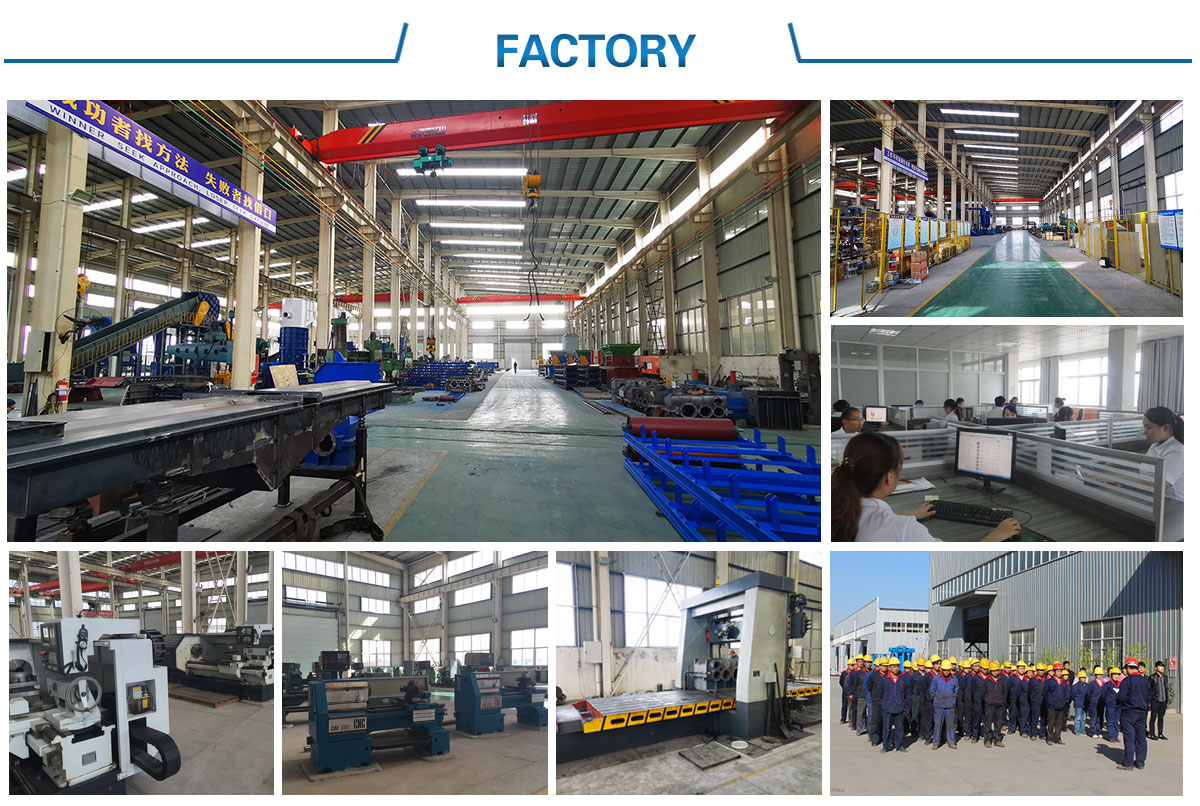

factory

certificate
