HZS50 Concrete Batching Plant, Price, Supplier, For sale-KAMO

HZS50 CONCRETE BATCHING PLANT

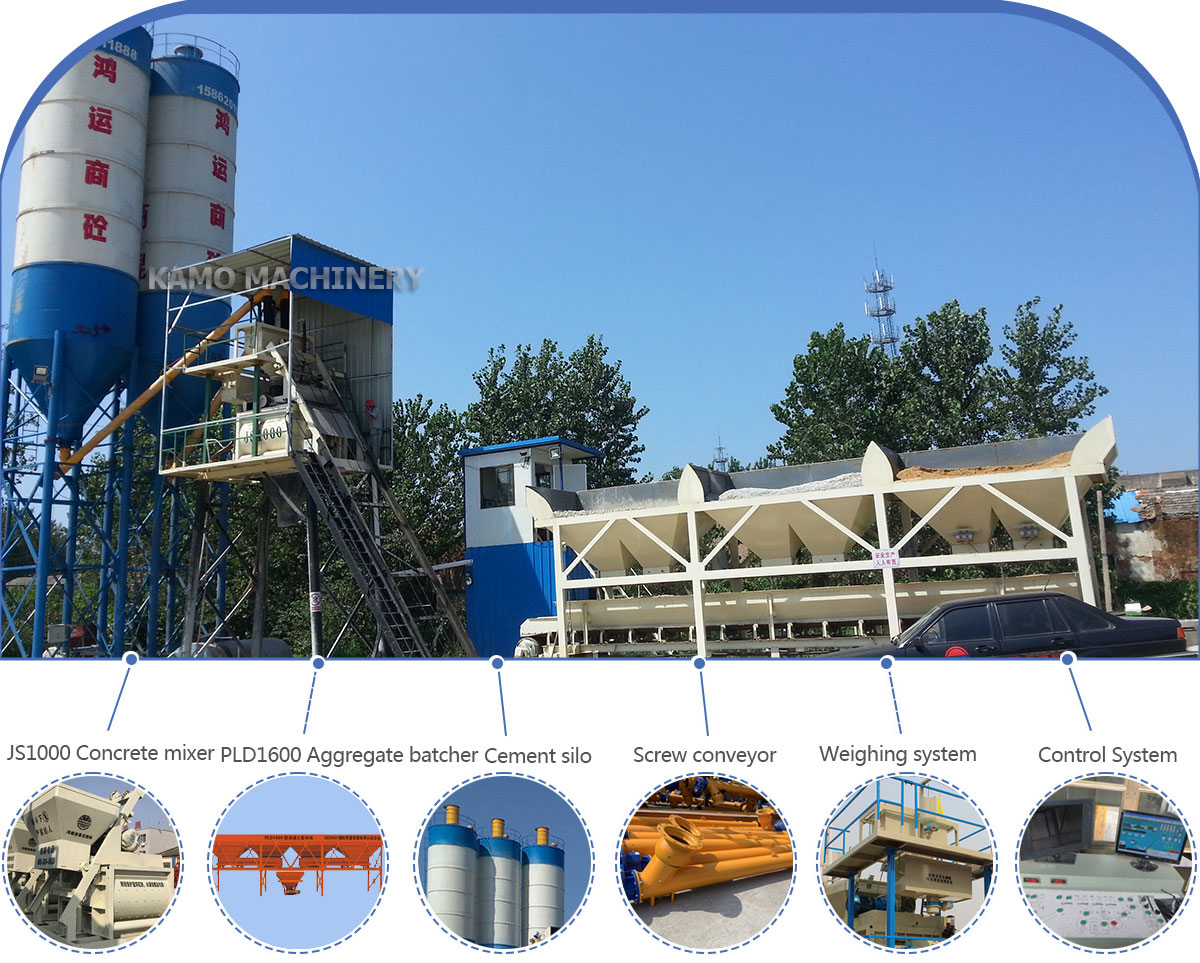

HZS50 Concrete Batching Plant, the productivity is 50m3/h. It is an economical concrete mixing equipment with automatic batching and feeding functions. It is skip hopper type, it is widely used in medium-scale construction, road and bridge engineering and concrete product prefabrication plants. It has many advantages such as simple design, quick installation, and space saving, which are ideal for the majority of construction units to produce high-quality concrete.

The mixer adopts the JS series double-horizontal-shaft forced mixer, which adopts the latest design ideas of electronic weighing, microcomputer control, digital display and other control technologies. The electronic weighing has buffer devices and automatic compensation functions, and the measurement accuracy is high. The aggregate feeding system adopts hopper feeding, which shortens the floor space of the mixing station and is economical. It is an ideal equipment for the majority of small and medium concrete projects.

HZS50 CONCRETE BATCHING PLANT

TECHNICAL PARAMETERS

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS100	HZS120	HZS180
Theoretical capacity （m³/h）	25	35	50	60	75	90	100	120	180
Mixer model	JS500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000	JS2000	JS3000
Mixing motor power （kw）	1×18.5	1×30	2×18.5	2×18.5	2×30	2×30	2×37	2×37	2×55
Number of kinds of aggregates (species)	3	3	4	4	4	4	4	4	4
Max. aggregate sizes （mm）	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80
Discharge height（mm）	3.8	3.8	4.2	4.2	4.2	4.2	4.2	4.2	4.2
Maximum weighing value of aggregate（kg）	1200	2000	4000	4000	5000	5000	5000	5000	8000
Maximum weighing value of cement	1200	1200	1200	1200	1500	1500	1500	1500	1800
Maximum weighing value of coal ash（kg）	500	500	600	600	800	800	800	800	1000
Maximum weighing value of water（kg）	500	500	600	600	700	700	700	700	800
Maximum weighing value of additive（kg）	50	50	50	50	50	50	50	50	80
一 type overall dimension（L×W×H）（mm）	11360×8280 ×7866	11360×8280 ×7866	37000×14000 ×10828	37000×14000 ×10828	35000×10000 ×9900	60400×16110 ×12284	64000×17000 ×12484	64000×17000 ×12484	74000×13540 ×11850
L-type overall dimension（L×W×H）（mm）	11360×8280 ×7866	11360×8280 ×7866	40097×20710 ×10828	40097×20710 ×10828	26174×17369 ×9900	47620×21148 ×12284	47000×21000 ×12484	47000×21000 ×12484	53800×25400 ×11850

MAIN FEATURE

　　1. Fast feeding: The feeding system adopts skip hopper hoisting to load. The unique design of the hopper and track can conveniently and efficiently contain and dump aggregates to ensure smooth production.

　　2. The concrete mixing host adopts high-quality and efficient JS1000 twin-shaft forced mixer, pneumatic discharge, dual motors provide strong power, high wear-resistant mixing blades and liners, precise shaft end seals, SKF bearings, good quality and efficiency High and long life.

　　3. The aggregate is batched by the PLD1600 batching machine, with high measuring accuracy and high output.

　　4. Save land area: Compared with the usual concrete batching plant with inclined belt conveyor, it can save up to two-thirds of the land area.

　　5. Reduce investment cost: The total investment cost of equipment is lower, which is an economical concrete batching plant.

　　6. Short installation cycle: The installation and adjustment of the entire line can be completed in only 2-4 days. Easy to move: Less equipment is needed for disassembly, it is quick.

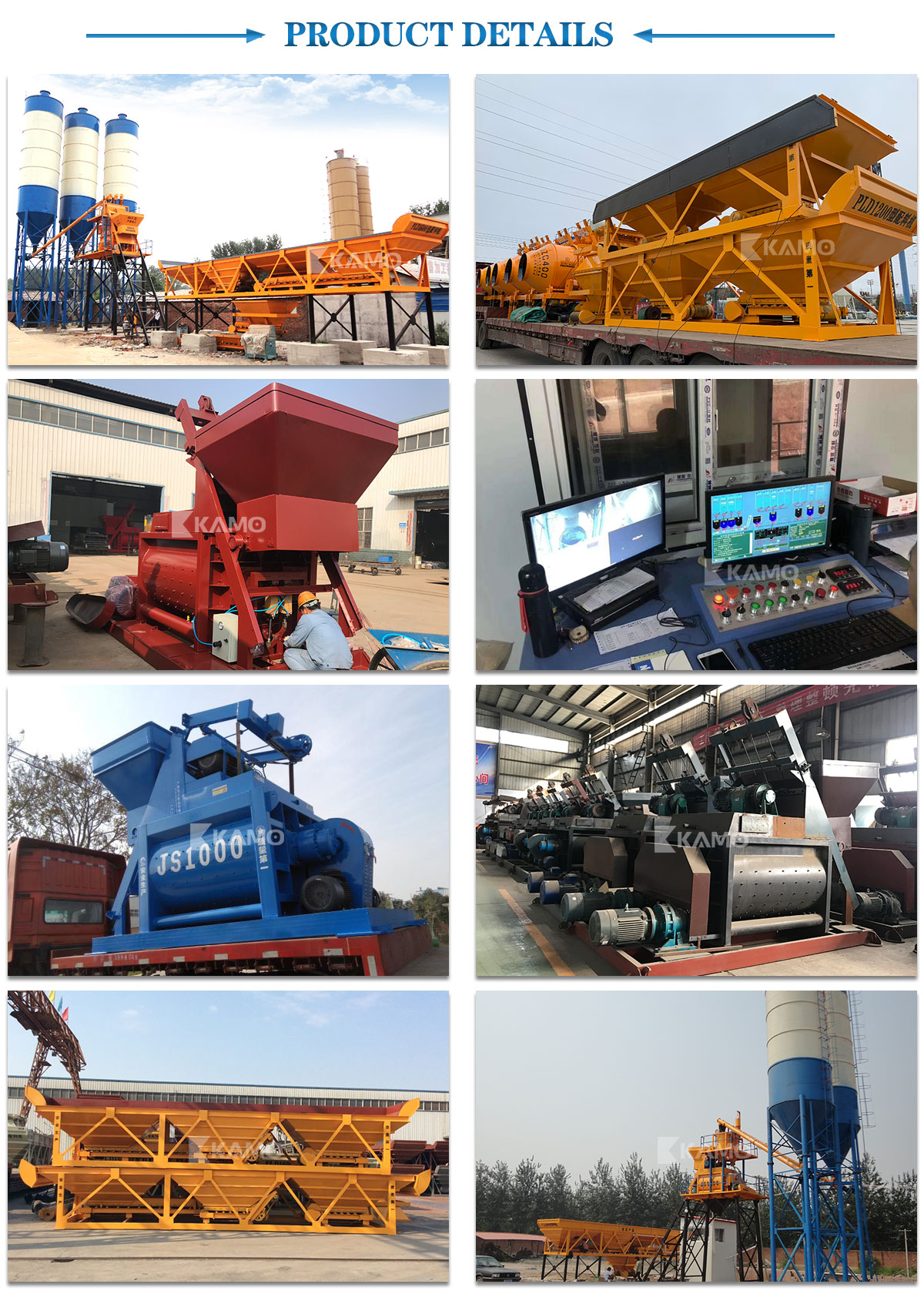

product details

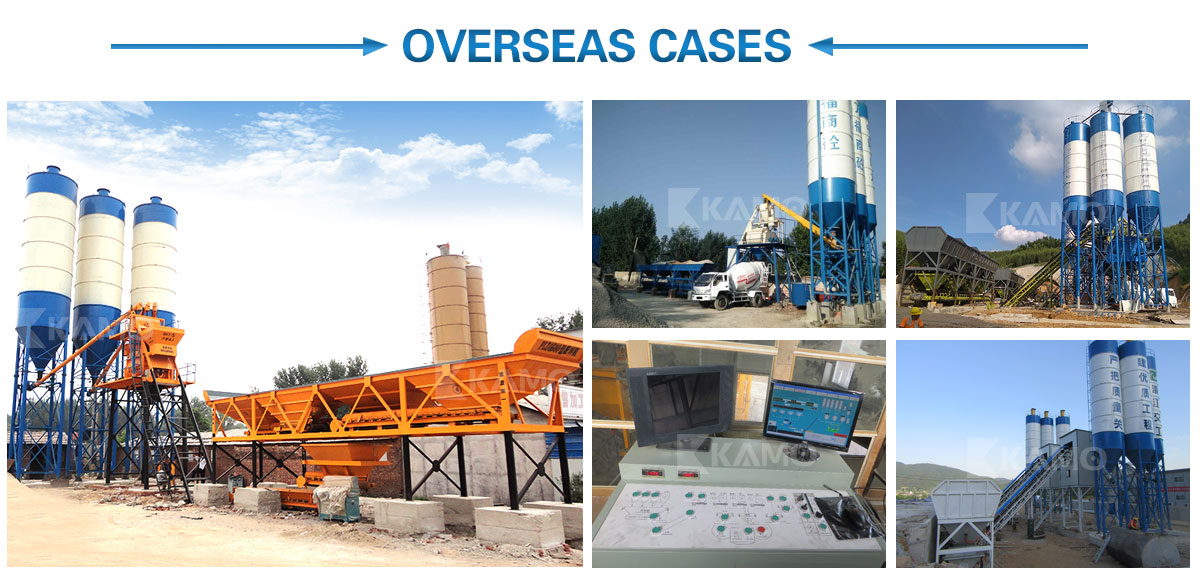

overseas cases

customer visit

product delivery

our factory
