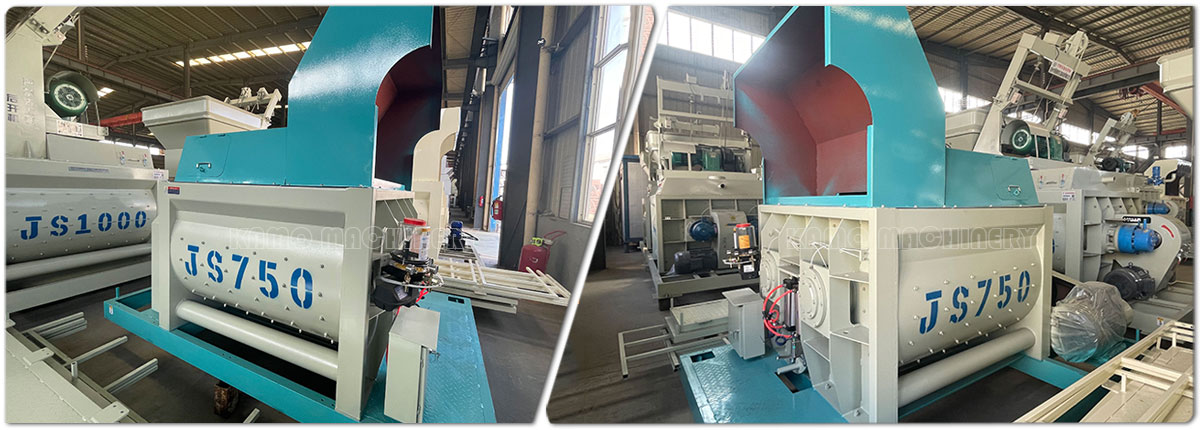

InstagramJS750 double-shaft forced mixer discharges 0.75 cubic meters each time, also called 0.75 forced mixer, with an hourly productivity of 35m3/h. It is usually used as the mixing host of HZS35 concrete mixing plant. This machine has a single machine independent operation and PLD The concrete batching machine constitutes the dual advantages of a simple concrete mixing station.
The JS series concrete mixer is a double-horizontal-shaft forced mixer. This machine has the dual advantages of a single machine independent operation and a simple concrete mixing plant with the PLD series batching machine. It can also provide a supporting host for the mixing station, which is suitable for various large , Small and medium-sized prefabricated component plants and industrial and civil construction projects such as highways, bridges, water conservancy, wharves, etc. It can mix dry hard concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortars. It is a high-efficiency machine It has a wide range of applications.
This series of products have reasonable design structure, novel layout, convenient use and maintenance, and can be modified according to user's special requirements to meet user needs.
JS750 CONCRETE MIXER VIDEO
TECHNICAL PARAMETERS
| Model | JS500 | JS750 | JS1000A | JS1500A | JS1000B | JS1500B | JS2000 | JS3000 |
| Discharge capacity（L） | 500 | 750 | 1000 | 1500 | 1000 | 1500 | 2000 | 3000 |
| Feeding capacity（L） | 800 | 1200 | 1600 | 2400 | 1600 | 2400 | 3200 | 4800 |
| Theoretical productivity（m³/h） | ≥25 | ≥35 | ≥50 | ≥75 | ≥60 | ≥90 | ≥120 | ≥150 |
| Overall quality（kg） | 4000 | 5500 | 8700 | 11130 | 8700 | 6500 | 7500 | 9200 |
| Stirring motor power（KW） | 18.5 | 30 | 37 | 30 | 37 | 30 | 37 | 55 |
| Increase motor power（KW） | 5.5 | 7.5 | 15 | 18.5 | / | / | / | / |
| Water pump motor power（KW） | 1.1 | 1.5 | 3 | 3 | / | / | / | / |
| Hoisting motor power（KW） | 5.5 | 7.5 | 15 | 18.5 | / | / | / | / |
| Mixing blade speed（r/min） | 31 | 31 | 19.5 | 19.5 | 19.5 | 24.5 | 24.5 | 21 |
| Discharge height（m） | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8-4.2 | 3.8 | 4.2 |
PRODUCT ADVANTAGES

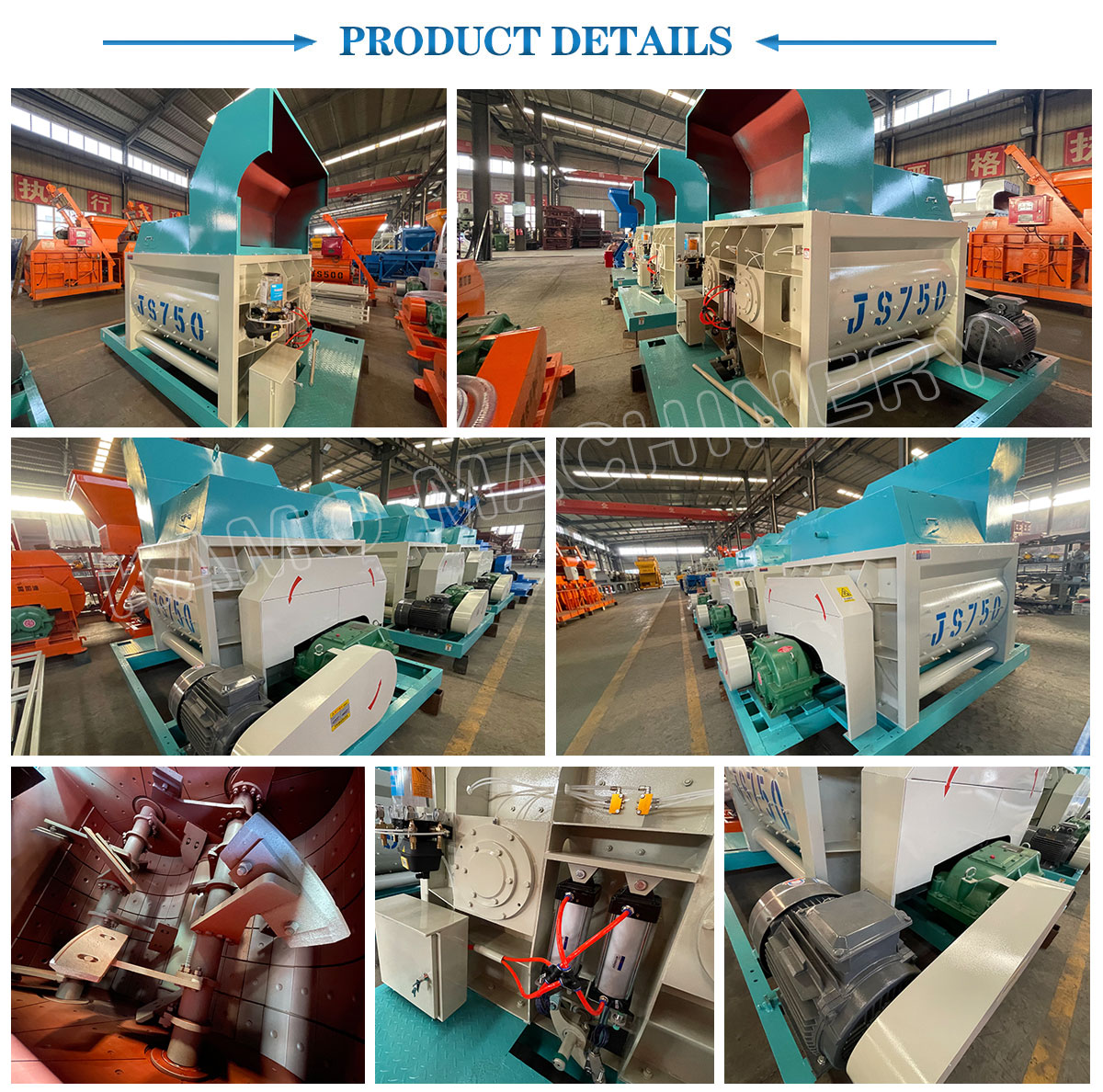

The JS750 compulsory concrete mixer produced by Zhengzhou KAMO Machinery Co., Ltd. It has the advantages of convenient control of water addition, strong power, low power consumption, and strong power. The built-in vortex mixer can prevent materials from consolidating and uniting the warehouse. The forced mixer includes planetary mixing. Mechanism, vortex stirring mechanism, stirring shaft, discharge mechanism, discharge port, mixing frame and bottom frame, etc., and also have the characteristics of low energy consumption, fast discharge, simple operation, convenient maintenance, etc., which are currently advanced Good model.
WORKING PRINCIPLE
JS750 concrete mixer is designed and manufactured in accordance with GB/T9142-2000 "Concrete mixer technical conditions". The whole machine is composed of feeding, mixing, unloading, water supply, electrical and other parts. The sand, gravel, and cement are fed into the mixer by the upper hopper. , The mixing arm inside the mixer, the rotation of the blades will mix the material evenly, and finally dump it in the dump truck or concrete mixer truck.
