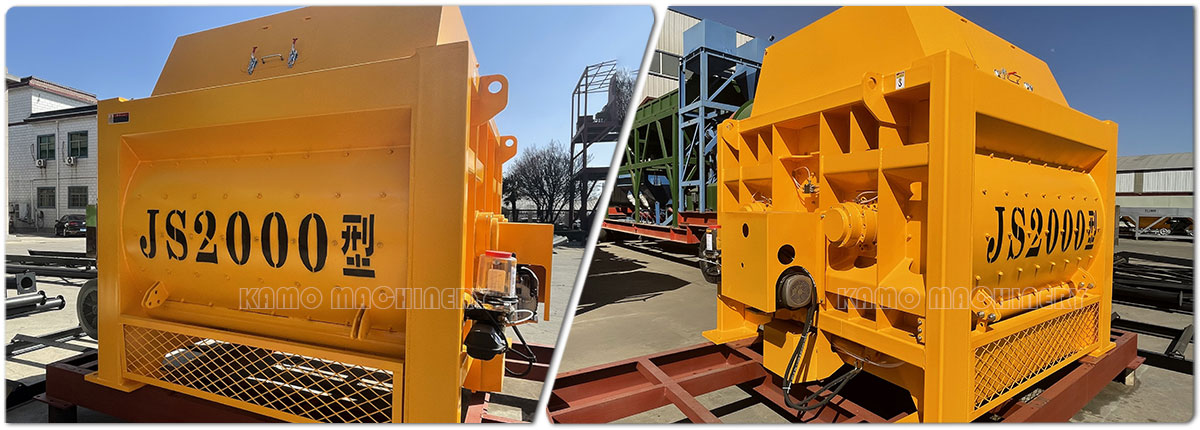

InstagramThe JS2000 compulsory concrete mixer produced by our company discharges 2 squares at a time, also known as 2 square concrete mixers, two square mixers. The discharge cycle of the JS2000 mixer is 60S. It is usually used as the mixing host of the 120 mixing station, and it can also be a stand-alone mixer. Independent work.
The JS series concrete mixer is a double-horizontal-shaft forced mixer. This machine has the dual advantages of a single machine independent operation and a simple concrete mixing plant with the PLD series batching machine. It can also provide a supporting host for the mixing station, which is suitable for various large , Small and medium-sized prefabricated component plants and industrial and civil construction projects such as highways, bridges, water conservancy, wharves, etc. It can mix dry hard concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortars. It is a high-efficiency machine It has a wide range of applications.
This series of products have reasonable design structure, novel layout, convenient use and maintenance, and can be modified according to user's special requirements to meet user needs.
JS2000 CONCRETE MIXER VIDEO
TECHNICAL PARAMETERS
| Model | JS500 | JS750 | JS1000A | JS1500A | JS1000B | JS1500B | JS2000 | JS3000 |
| Discharge capacity（L） | 500 | 750 | 1000 | 1500 | 1000 | 1500 | 2000 | 3000 |
| Feeding capacity（L） | 800 | 1200 | 1600 | 2400 | 1600 | 2400 | 3200 | 4800 |
| Theoretical productivity（m³/h） |
≥25 |
≥35 | ≥50 | ≥75 | ≥60 | ≥90 | ≥120 | ≥150 |
| Overall quality（kg） | 4000 | 5500 | 8700 | 11130 | 8700 | 6500 | 7500 | 9200 |
| Stirring motor power（KW） | 18.5 | 30 | 37 | 30 | 37 | 30 | 37 | 55 |
| Increase motor power（KW） | 5.5 | 7.5 | 15 | 18.5 | / | / | / | / |
| Water pump motor power（KW） | 1.1 | 1.5 | 3 | 3 | / | / | / | / |
| Hoisting motor power（KW） | 5.5 | 7.5 | 15 | 18.5 | / | / | / | / |
| Mixing blade speed（r/min） | 31 | 31 | 19.5 | 19.5 | 19.5 | 24.5 | 24.5 | 21 |
| Discharge height（m） | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8-4.2 | 3.8 | 4.2 |
PRODUCT ADVANTAGES
JS2000 compulsory concrete mixer discharges 2 squares at a time, also known as 2 square concrete mixer, two square mixer, JS2000 mixer discharge cycle is 60S, usually used as 120 mixing station mixing host, this host is currently advanced at home and abroad, The ideal construction equipment model has the advantages of high degree of automation, good mixing quality, high efficiency, low energy consumption, low noise, convenient operation, fast discharge speed, long service life of liners and blades, and convenient maintenance.
WORKING PRINCIPLE
JS2000 double-horizontal-shaft forced concrete mixer is composed of loading, mixing, unloading, water supply, electrical, cover, chassis, outriggers and other parts.
The mixing system is composed of a direct-coupled planetary cycloid reducer, open gear, mixing tank, mixing device, oil supply device, etc. The whole machine is composed of feeding, mixing, unloading, water supply, electrical and other parts. The upper hopper sends sand, stones, and cement to the mixing host. The mixing arm inside the mixer and the rotation of the blades mix the materials evenly, and then dump them in the tipping bucket. Truck or concrete mixer truck.
