TL80 SERIES FOUR SHAFT SHREDDER

inquire about this equipment

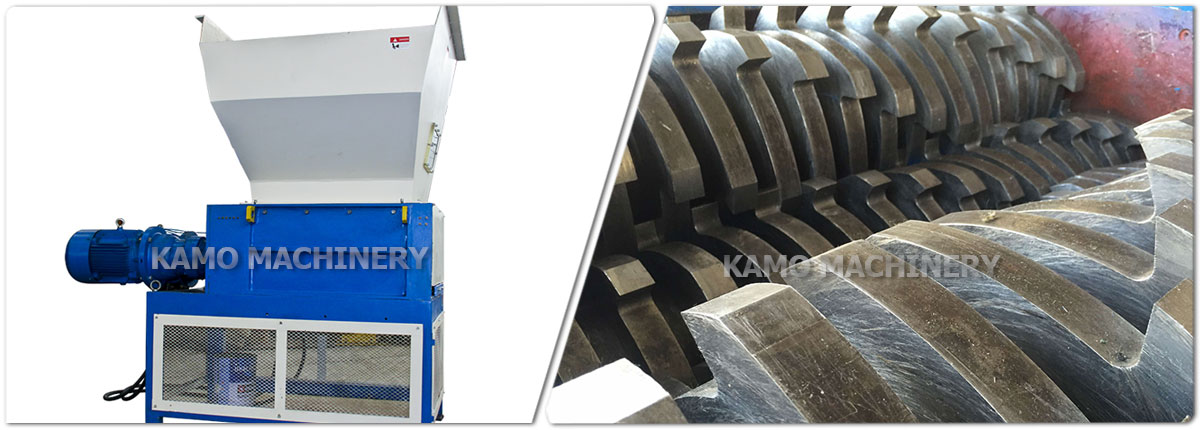

　　Four shaft shredder is a multifunctional, highly versatile machine.By using European planetary gear reducer with gear drive,differential operation between spindles.Also with standardized modular design and parts have good interoperability. Available to customize according to different requirement and material, increase user' s satisfaction level as much as possbile. Final output size is controllable. Electrical parts use Siemens PLC program control with overload automatic reverse function.

APPLICATION

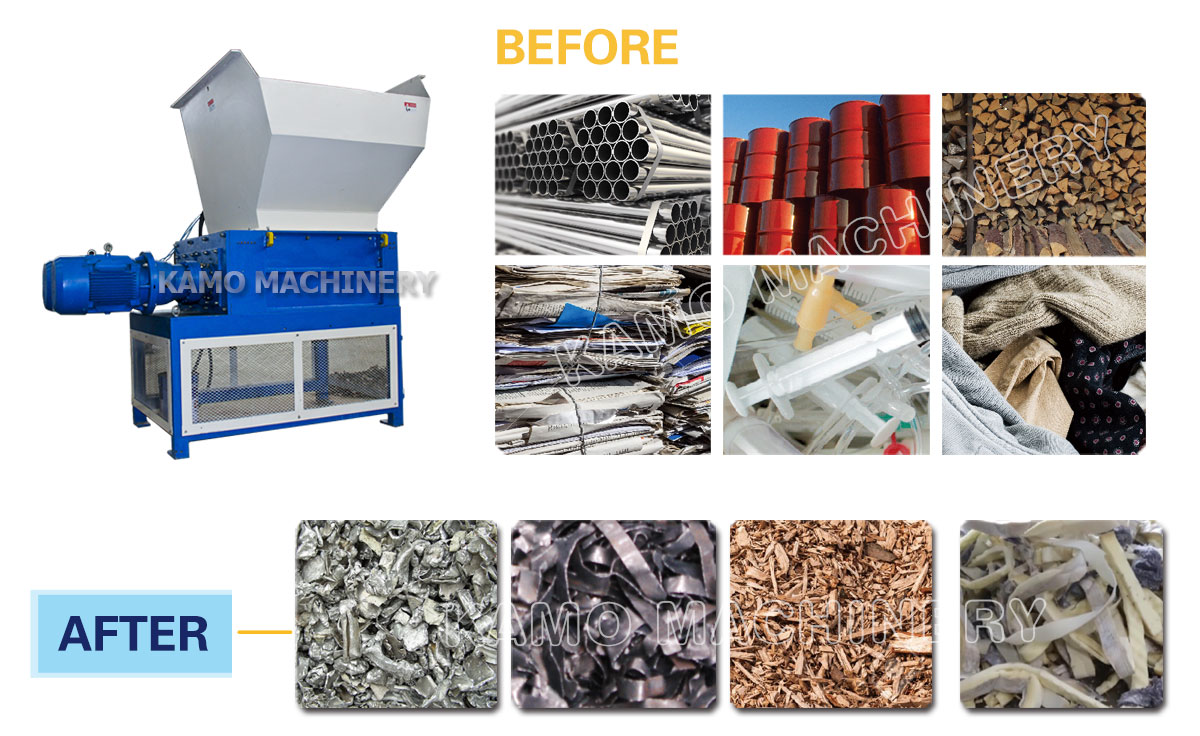

　　Suitable for plastic barrel, plastic bottle, metal drum, circuit board, garbage, medical waste,hazardous waste, electronic waste etc.

Shred all kinds of solid waste

specification

TECHNICAL PARAMETERS

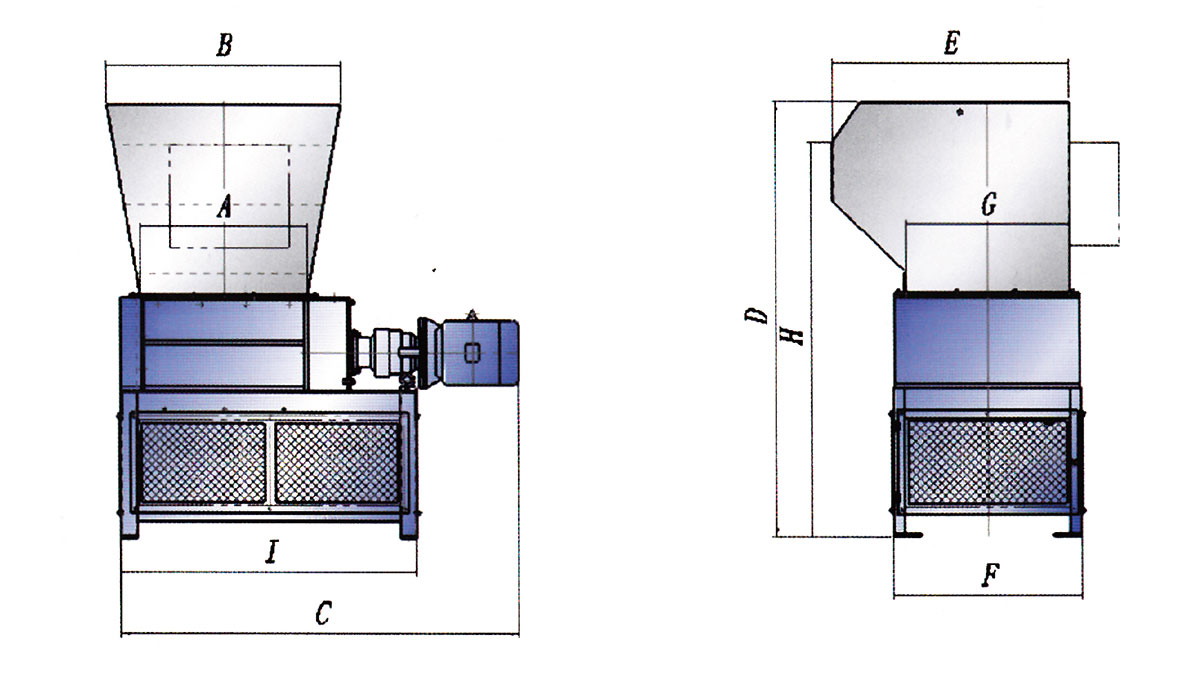

Model	TL8040	TL8060	TL8080	TL80100
A(mm)	424	614	842	1050
B(mm)	762	952	1180	1420
C(mm)	1610	1840	2350	2680
D(mm)	2200	2200	2200	2200
E(mm)	1195	1195	1195	1200
F(mm)	950	950	950	950
G(mm)	820	820	830	830
I(mm)	1082	1272	1490	1730
Main blade diameter	φ245	φ245	φ245	φ245
Auxiliary blade diameter	φ270	φ270	φ270	φ270
Main shaft speed	25	25	25	25
Main blade quantity	20	30	42	54/27
Auxiliary blade quantity	20	30	42	54/27
Blade thickness	18.5	18.5	18.5	18.5/37
Machine power	7.5+7.5	11+11	11+11	15+15

Features

　　This Shredder comply to CE certificate. Machine technology is from Italy. It is a multifunctional, highly versatile machine. Adopt standardized modular desig and parts have good interoperability. Auxiliary blade is refined by forging, main blade is made of special alloy steel with a specialized technology, has the characteristics of good wear resistance and high strength. Driving system with intermediate gear drive, forming differential relation. Screen is easy and convenient to replace,appearance is elegant and structure is exquisite and compact.

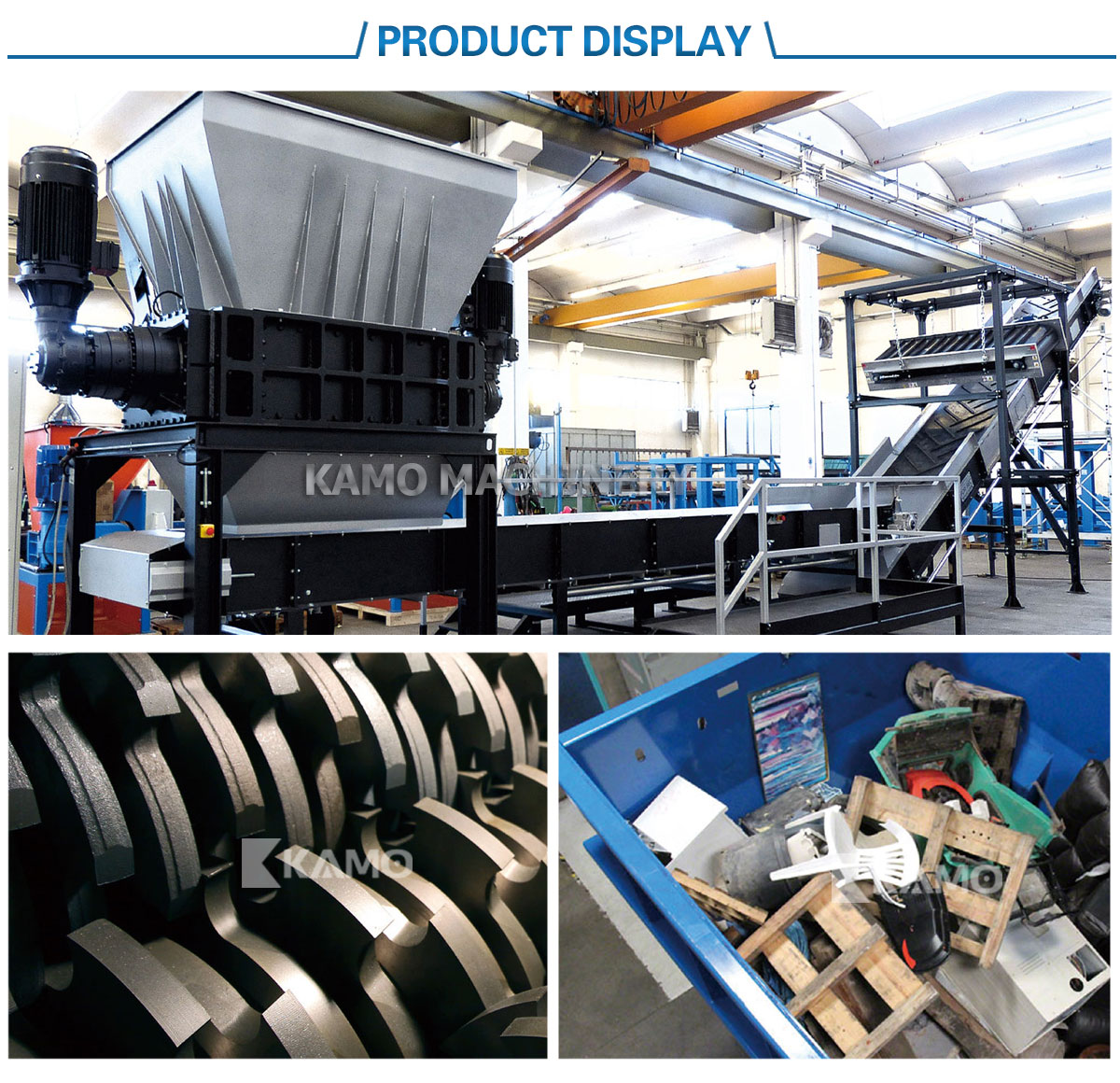

product display

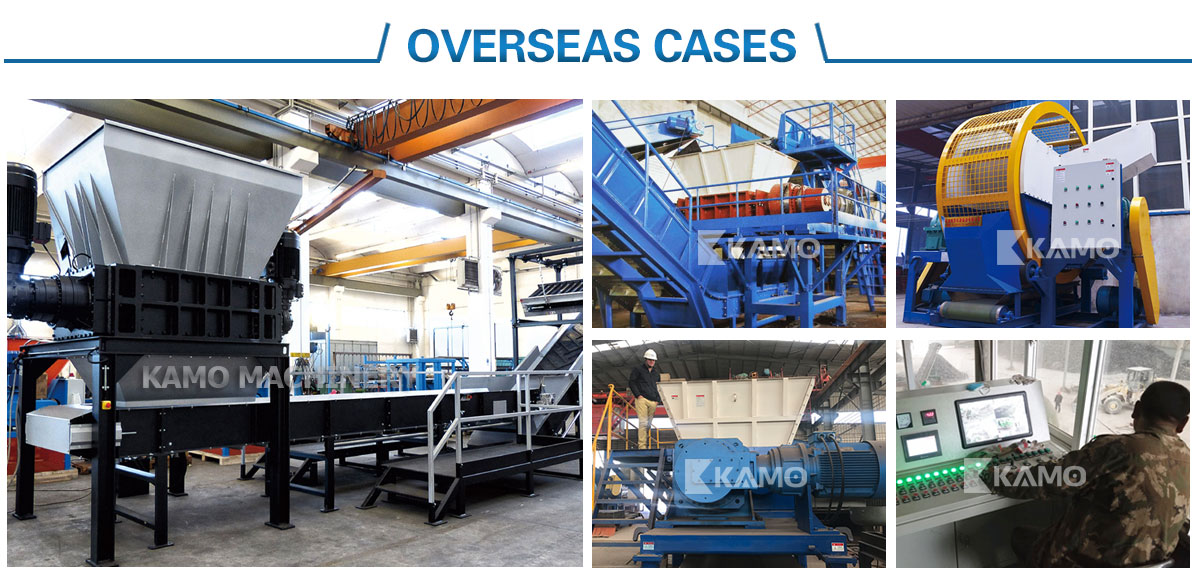

overseas cases

customer visit

delivery

factory

certificate
