HBTS concrete pump

　　HBTS series concrete pumps can deliver concrete with aggregate size of 5 cm or less, with a displacement range from 40m³/h to 100m³/h. They are suitable for delivering concrete or mortar in civil construction, transportation, railways, water conservancy, electric power and national defense projects.

　　HBTS series concrete pumps are divided into electric and diesel types. Concrete pumps powered by diesel engines are suitable for remote areas with insufficient electricity.

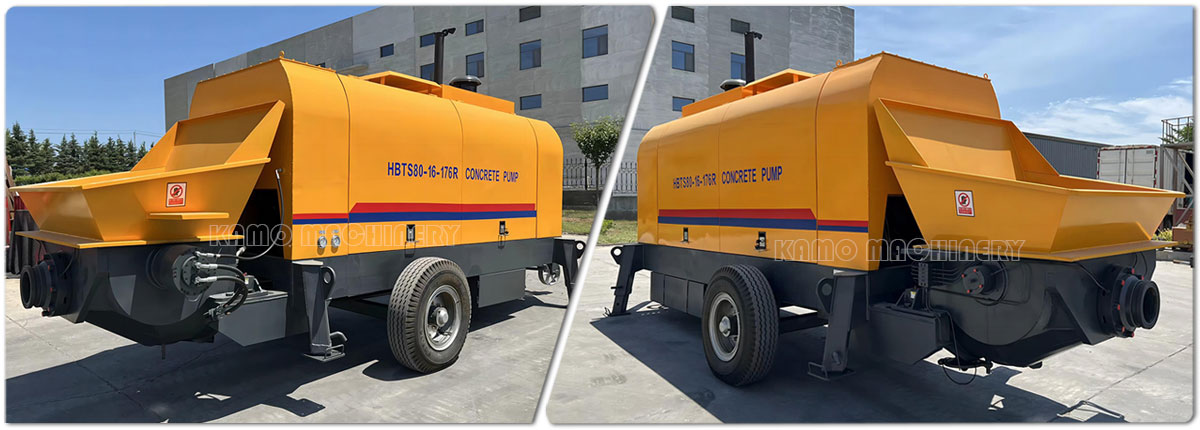

concrete pump

CONCRETE PUMP VIDEO

ELECTRIC CONCRETE PUMP TECHNICAL PARAMETERS

Model	HBT40E	HBT40C	HBT50	HBT6013	HBT8016	HBT8018
Theoretical delivery capacity（m³/h）	24	30	51/30	81/48	82/49	80/44
Concrete delivery pressure（MPa）	10	8	11.8/7	13/7.5	16/9	18/10
Maximum conveying distance（m）vertical horizontal	140/500	120/400	160/600	150/600	160/700	180/800
Main motor power（kw）	45	45	55	90	110	110
Main oil pump displacement（ml/r）	112	112	140	112DT	140DT	260
Delivery cylinder bore × stroke（mm×mm）	160×1000	180×1000	180×1300	200×1650	200×1650	200×1650
Master cylinder bore x stroke（mm×mm）	100×1000	100×1000	110×1300	125×1650	140×1650	150×1650
High and low voltage switching	no	no	have	have	have	have
Hopper capacity（m³）	0.6	0.6	0.7	0.8	0.8	0.8
Maximum aggregate size（mm）	40	40	40	50	50	50
Inner diameter of discharge port（mm）	125	150	150	180	180	180
Feeding height（mm）	1250	1250	1300	1450	1450	1450
Length × Width × Height（mm）	4200×1750×1600	4200×1750×1600	4600×1750×1600	5950×2000×2000	5950×2000×2000	5950×2000×2000
Host quality（kg）	2500	2800	3000	5700	6200	6500

DIESEL CONCRETE PUMP TECHNICAL PARAMETERS

Model	HBTS40R	HBTS60R	HBTS80R	HBTS90R	HBTS100R
Theoretical delivery capacity（m³/h）	53/29	61/38	98/59	92/55	100/58
Concrete delivery pressure（MPa）	12/6	12/7	12.5/7.5	9/16	10/18
Maximum conveying distance（m）vertical horizontal	150/500	150/600	150/600	160/700	180/800
Diesel engine power（kw）	66	82	129	140	176
Delivery cylinder bore × stroke（mm×mm）	160×1300	180×1300	200×1650	200×1800	200×1800
Master cylinder bore x stroke（mm×mm）	100×1300	110×1300	125×1650	140×1800	150×1800
High and low voltage switching	have	have	have	have	have
Fuel tank capacity（l）	90	90	150	150	150
Hopper capacity（m³）	0.6	0.7	0.8	0.8	0.8
Feeding height（mm）	1250	1300	1450	1450	1450
Inner diameter of discharge port（mm）	125	150	180	180	180
Maximum aggregate size（mm）	40	40	50	50	50
Length × Width × Height（mm）	4800×1750×1900	4800×1750×1900	6000×2000×2200	6000×2000×2200	6500×2000×2300
Host quality（kg）	3500	4200	5800	6500	6800

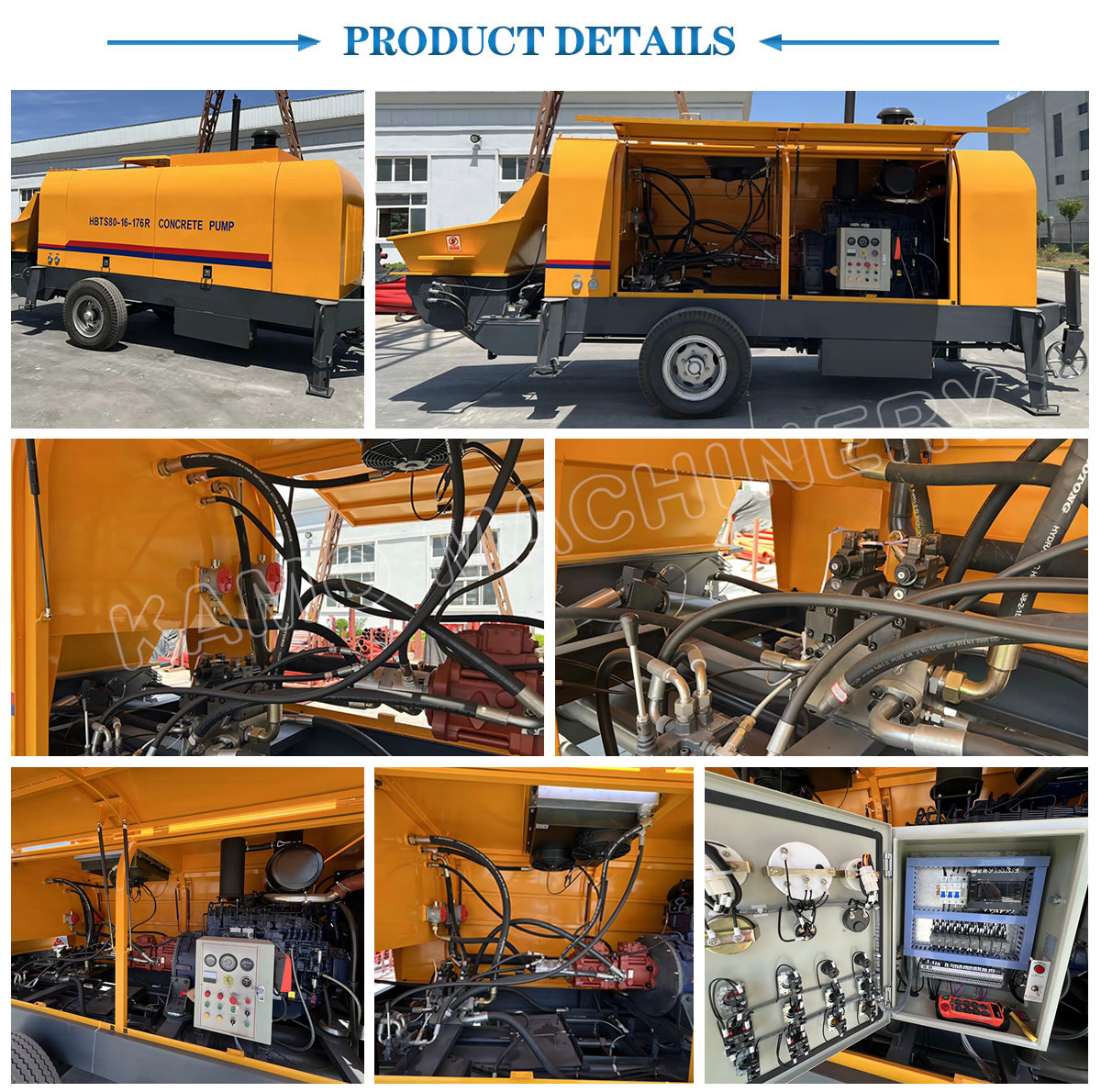

concrete pump details

customer visit

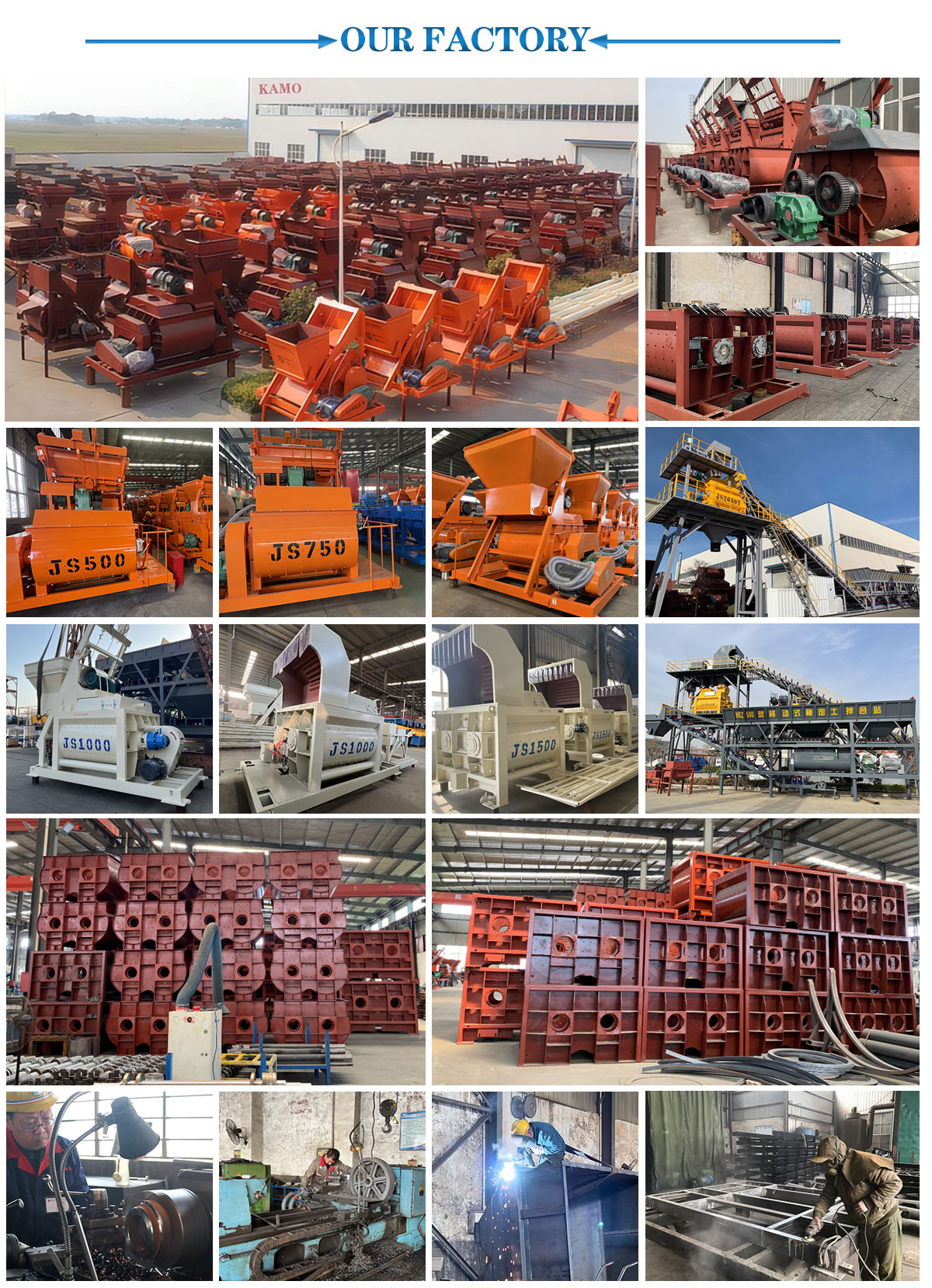

our factory
