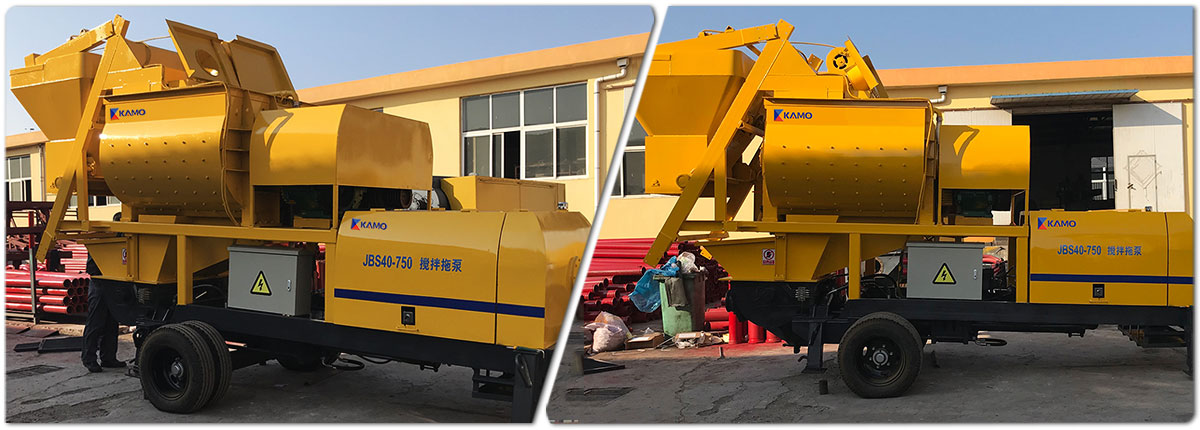

JBS40B twin shaft mixer pump

　　This series of products integrates the twin-shaft forced mixer JS500, JS750 and the delivery pump. Compared with the JBS series of forced mixer pumps, the production efficiency of the forced mixer is significantly improved, which can give full play to the high efficiency advantages of the delivery pump and is suitable for occasions with relatively large engineering quantities.

TECHNICAL PARAMETERS

Model	JBS40B-50	JBS40B-75
Theoretical delivery capacity（m³/h）	37	37
Concrete delivery pressure（MPa）	8	8
Maximum conveying distance（m）vertical horizontal	120/500	120/500
Main motor power（kw）	45	45
Delivery cylinder bore × stroke（mm×mm）	200×1000	200×1000
Main cylinder bore x stroke（mm×mm）	100×1000	100×1000
Maximum aggregate size（mm）	50	50
Stirring motor power（kw）	18.5	30
Feeding motor power（kw）	5.5	7.5
Upper hopper capacity（m³）	0.8	1.2
Mixer discharge capacity（m³）	0.5	0.75
Mixer productivity（m³/h）	25	35
Length × Width × Height（mm）	4800×2200×3150（transport height）	5050×2200×3450（transport height）
Host quality（kg）	7500	8100

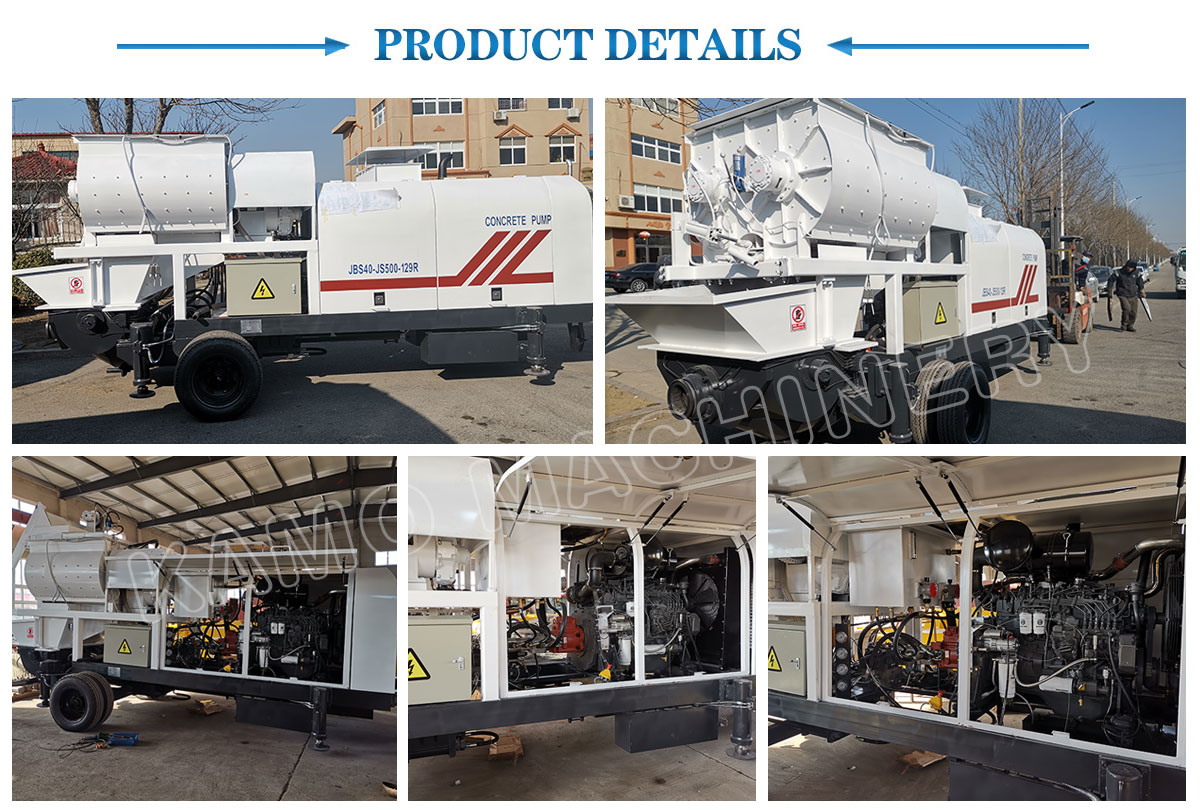

twin shaft mixer pump details

customer visit

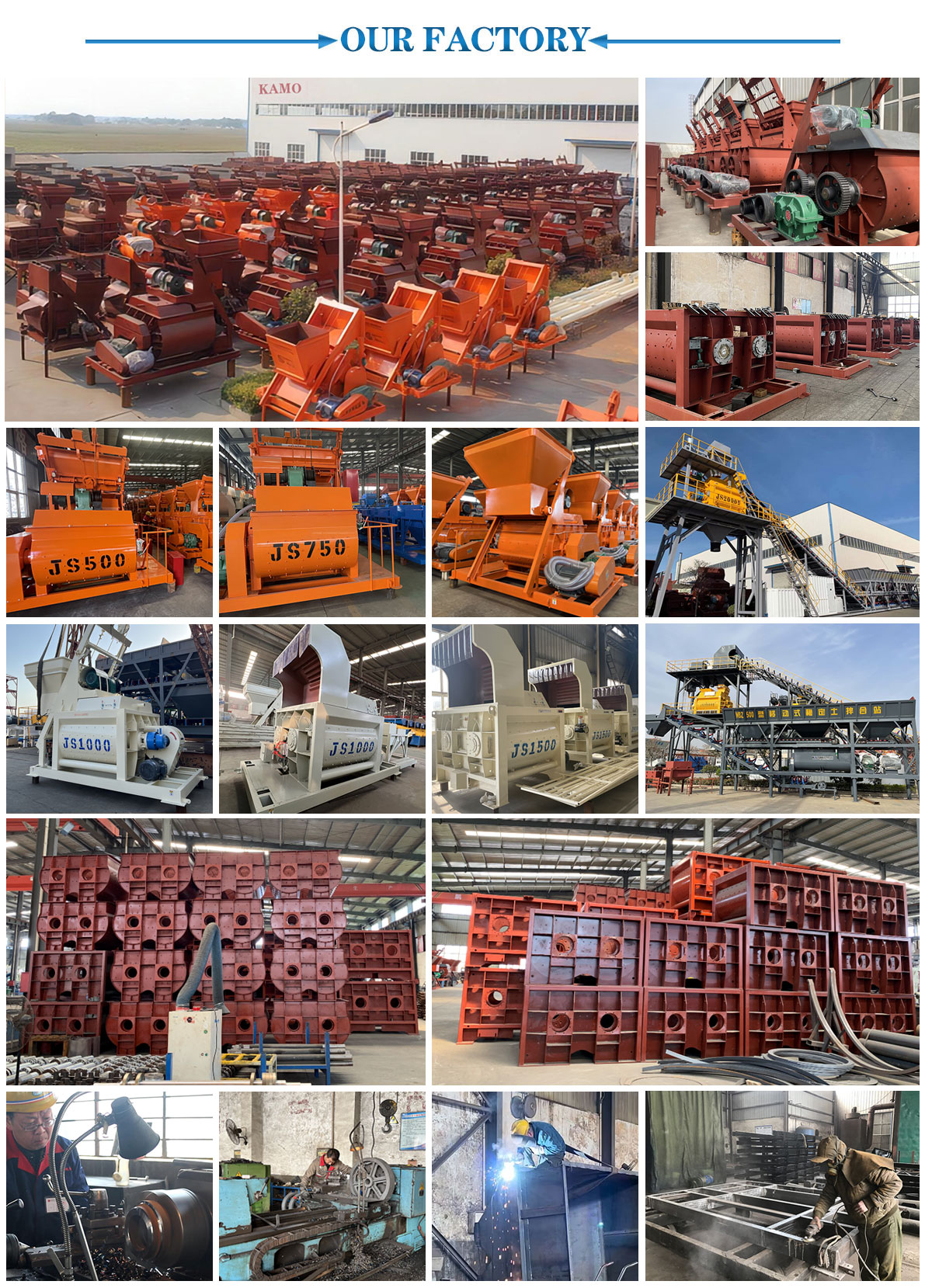

our factory
