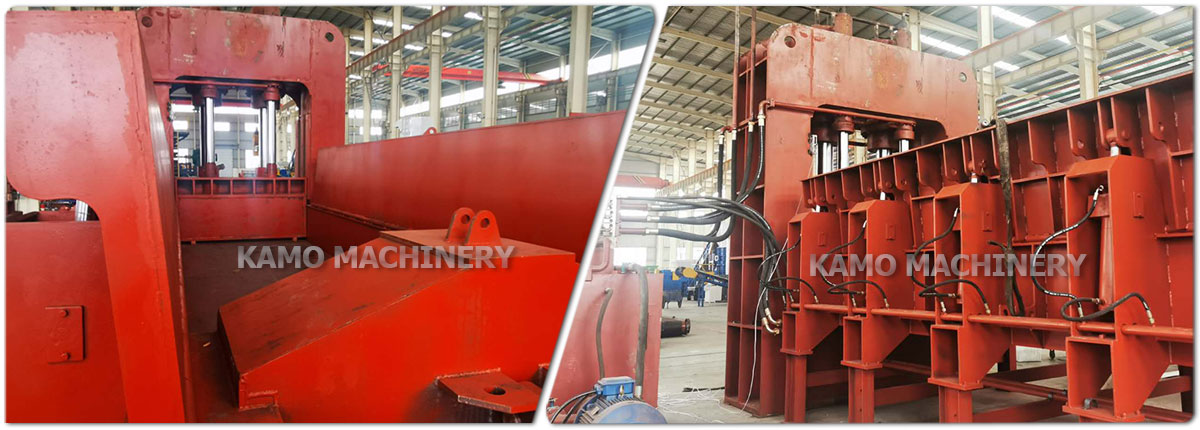

The machine uses the upper and lower sides of the compression and the waste shaping and feeding way,with a wide entrance shear,feeding cavity deep and other characteristics,the plastic shear after cutting the material into a cuboid shape,high output,production efficiency Significant.
TECHNICAL PARAMETERS
| Model | Maximum shear force(T) | Cutting length(mm) | Maximum cutting size (mm) | Yield (T/H) | Shear frequency (min) | Motor(KW) |
| Y91-800 | 800 | 5000×2000×1400 | 900 | 12.0-25.0 | 4.5 | 4×90 |
| Y91-1000 | 1000 | 6000×2000×1400 | 1000 | 15.0-28.0 | 4.5 | 5×90 |
| Y91-1250 | 1250 | 7000×2000×1400 | 1000 | 18.0-30.0 | 4.5 | 6×90 |
PRODUCT FEATURES
Using hydraulic transmission and automatic electrical control system,with a smooth operation,reliable,simple operation and so on.
1. The series of single-layer shear box for the material form.
2. This series of cutting machine with 500,630,800,1000,1250 type available for users to choose.processing equipment,but also as a factory casting furnace processing and machanical construction industry,metal cutting equipment.
