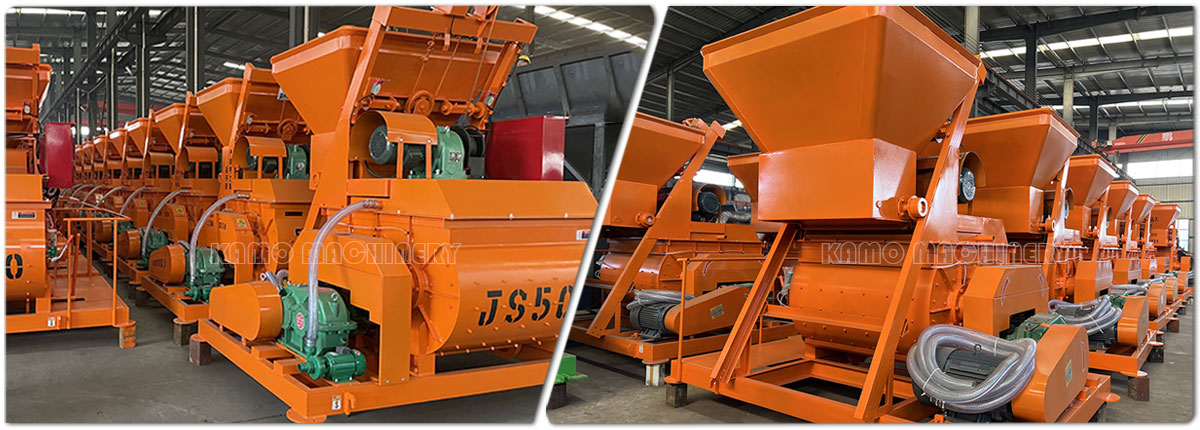

InstagramJS500 double-shaft forced concrete mixer, 0.5 cubic meter per discharge, also called 0.5 cubic concrete mixer, with an hourly productivity of 25m3/h, mostly used as the host of HZS25 mixing plant, and can also be equipped with stand-alone independent operation and PLD series concrete batching The machine constitutes a simple concrete mixing station.
The JS series concrete mixer is a double-horizontal-shaft forced mixer. This machine has the dual advantages of a single machine independent operation and a simple concrete mixing plant with the PLD series batching machine. It can also provide a supporting host for the mixing station, which is suitable for various large , Small and medium-sized prefabricated component plants and industrial and civil construction projects such as highways, bridges, water conservancy, wharves, etc. It can mix dry hard concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortars. It is a high-efficiency machine It has a wide range of applications.
This series of products have reasonable design structure, novel layout, convenient use and maintenance, and can be modified according to user's special requirements to meet user needs.
JS500 CONCRETE MIXER VIDEO
TECHNICAL PARAMETERS
| Model | JS500 | JS750 | JS1000A | JS1500A | JS1000B | JS1500B | JS2000 | JS3000 |
| Discharge capacity（L） | 500 | 750 | 1000 | 1500 | 1000 | 1500 | 2000 | 3000 |
| Feeding capacity（L） | 800 | 1200 | 1600 | 2400 | 1600 | 2400 | 3200 | 4800 |
| Theoretical productivity（m³/h） |
≥25 |
≥35 | ≥50 | ≥75 | ≥60 | ≥90 | ≥120 | ≥150 |
| Overall quality（kg） | 4000 | 5500 | 8700 | 11130 | 8700 | 6500 | 7500 | 9200 |
| Stirring motor power（KW） | 18.5 | 30 | 37 | 30 | 37 | 30 | 37 | 55 |
| Increase motor power（KW） | 5.5 | 7.5 | 15 | 18.5 | / | / | / | / |
| Water pump motor power（KW） | 1.1 | 1.5 | 3 | 3 | / | / | / | / |
| Hoisting motor power（KW） | 5.5 | 7.5 | 15 | 18.5 | / | / | / | / |
| Mixing blade speed（r/min） | 31 | 31 | 19.5 | 19.5 | 19.5 | 24.5 | 24.5 | 21 |
| Discharge height（m） | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8-4.2 | 3.8 | 4.2 |

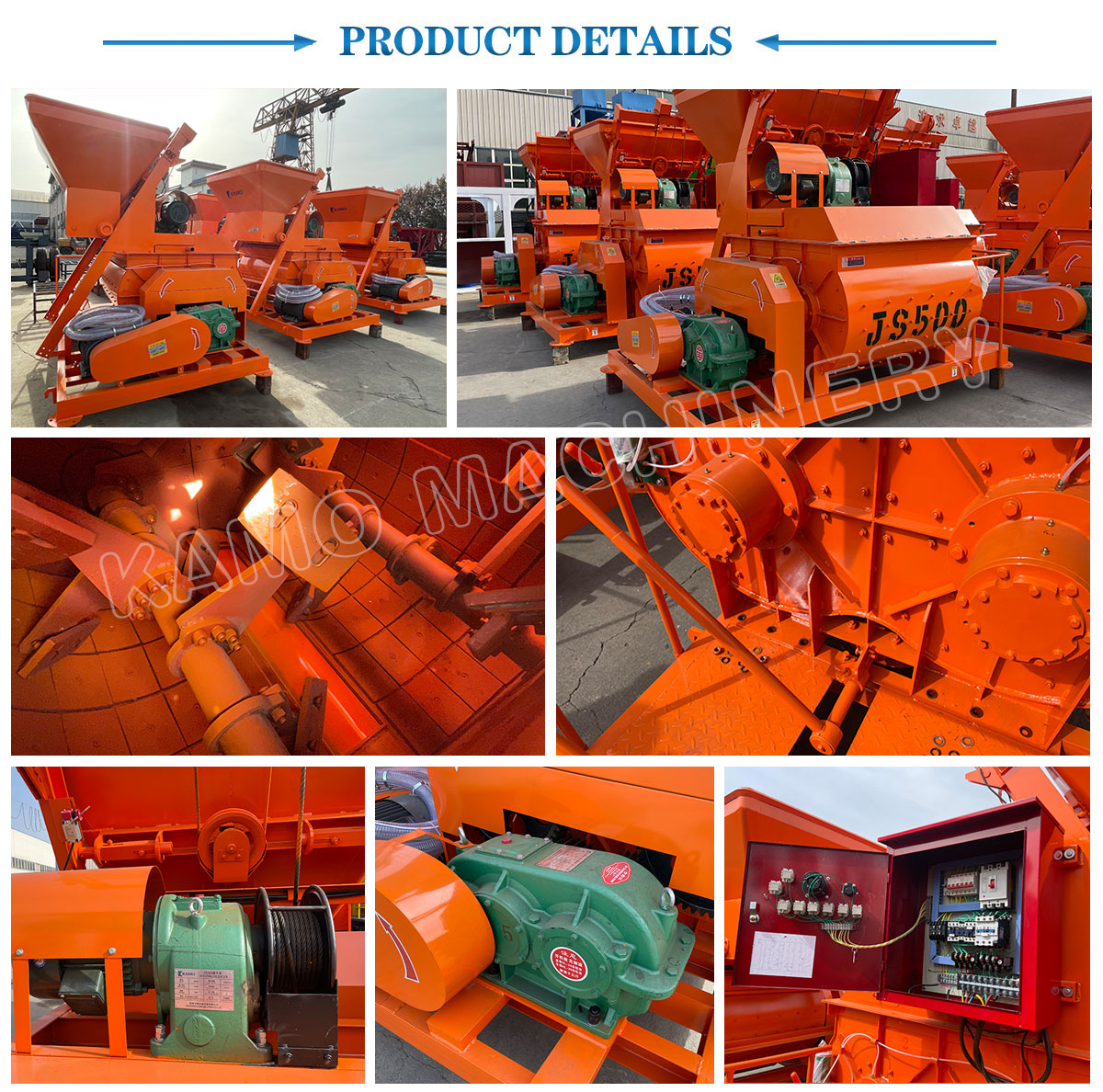

PRODUCT ADVANTAGES
The JS500 compulsory concrete mixer produced by Zhengzhou KAMO Machinery Co., Ltd. It has the advantages of convenient control of water addition, strong power, low power consumption, and strong power. The built-in vortex mixer can prevent materials from consolidating and uniting the warehouse. The forced mixer includes planetary mixing. Mechanism, vortex mixing mechanism, mixing shaft, discharge mechanism, discharge port, mixing frame and bottom frame, etc., but also has the characteristics of low energy consumption, fast discharge, simple operation, convenient maintenance and so on. It is currently constructed by small and medium-sized projects. Models are widely used in concrete mixing plants, concrete block machines, rural buildings and other fields.
It consists of a feeding system, a mixing system, a discharge system and an electrical control system. The famous motors, reducers, lubricating oil pumps, gears, seals, stirrer blades and internal linear plates, cylinders, etc. are used.
According to the control method of the outlet valve, there are two types: pneumatic control and manual control. The outlet valve driven by pneumatic control is stronger and more convenient than manual control. If the power is suddenly cut off, the air storage tank inside the air compressor can be supported to open the discharge port and discharge. Concrete inside.
WORKING PRINCIPLE
JS500 concrete mixer is designed and manufactured in accordance with GB/T9142-2000 "Concrete Mixer Technical Conditions". The whole machine is composed of feeding, mixing, unloading, water supply, electrical and other parts. The upper hopper sends sand, gravel and cement to the mixing host. , The mixing arm inside the mixer, the rotation of the blades will mix the material evenly, and finally dump it in the dump truck or concrete mixer truck.
