KAMO PS series scrap metal shredding line, shred small scrap metals with removing rust and painting to get 99.5% pure steel/iron, uniform output granularity.
APPLICATION
Our KAMO small scrap metal recycling plant is very popular to shred the small scrap materials as following :
Metal cans
Small metal painting bucket
Hard drive of computer
Size of final products after shredding depends on the hole size of sieve plate, 15-40mm is the popular output size of small scrap metal recycling plant for steel mills, we can customize the hole size of sieve plate as our customer's needs. Final Products are around 1.2tons/m3, recyclable rate is more than 90%, and get 99.5% pure steel/iron. With affordable investment, KAMO small scrap metal recycling plant can be applied widely in small scrap yards.
TECHNICAL PARAMETERS
| Model | Feed Opening Size(mm) | Motor Power(kw) | Equipment footprint(m) | Discharge size adjustment(mm) | Capactity(t/h) | Overall Dimension |
| PS6050 | 600 | 22 | 13×1.4 | 15-40 | 0.5 | 2400×1200×2800 |
| PS7080 | 800 | 37 | 13×1.5 | 15-40 | 0.8-1 | 2500×1500×3100 |
| PS8010 | 1000 | 55 | 14×1.7 | 15-40 | 1-2 | 2700×1800×3130 |
| PS8012 | 1200 | 75 | 15×2 | 15-40 | 1.5-2 | 3100×2000×3750 |
CONFIGURATION

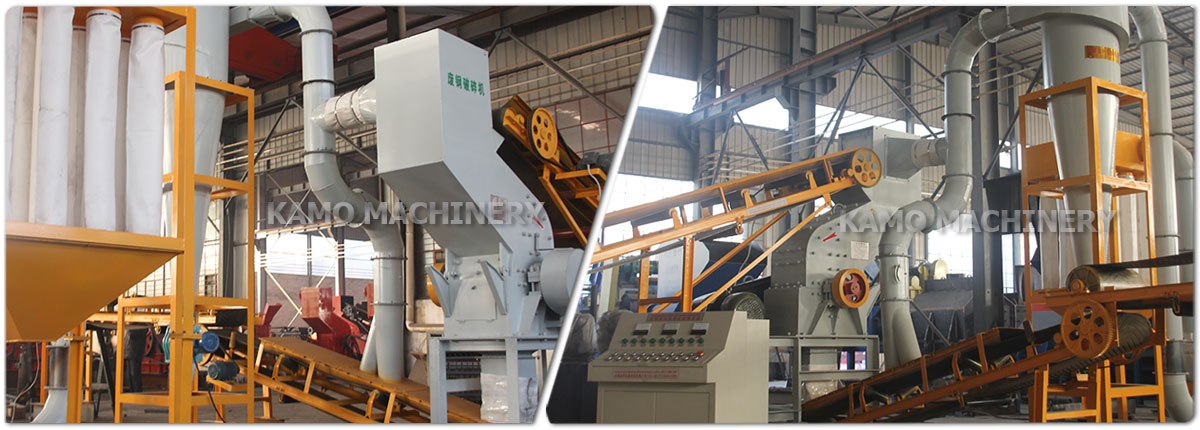

Our PS series small scrap metal recycling plant includes the entire line of equipment :
1. Feeding belt conveyor
2. Hammermill shredder
3. Discharging belt conveyor with magnetic roller
4. Discharging belt conveyor
