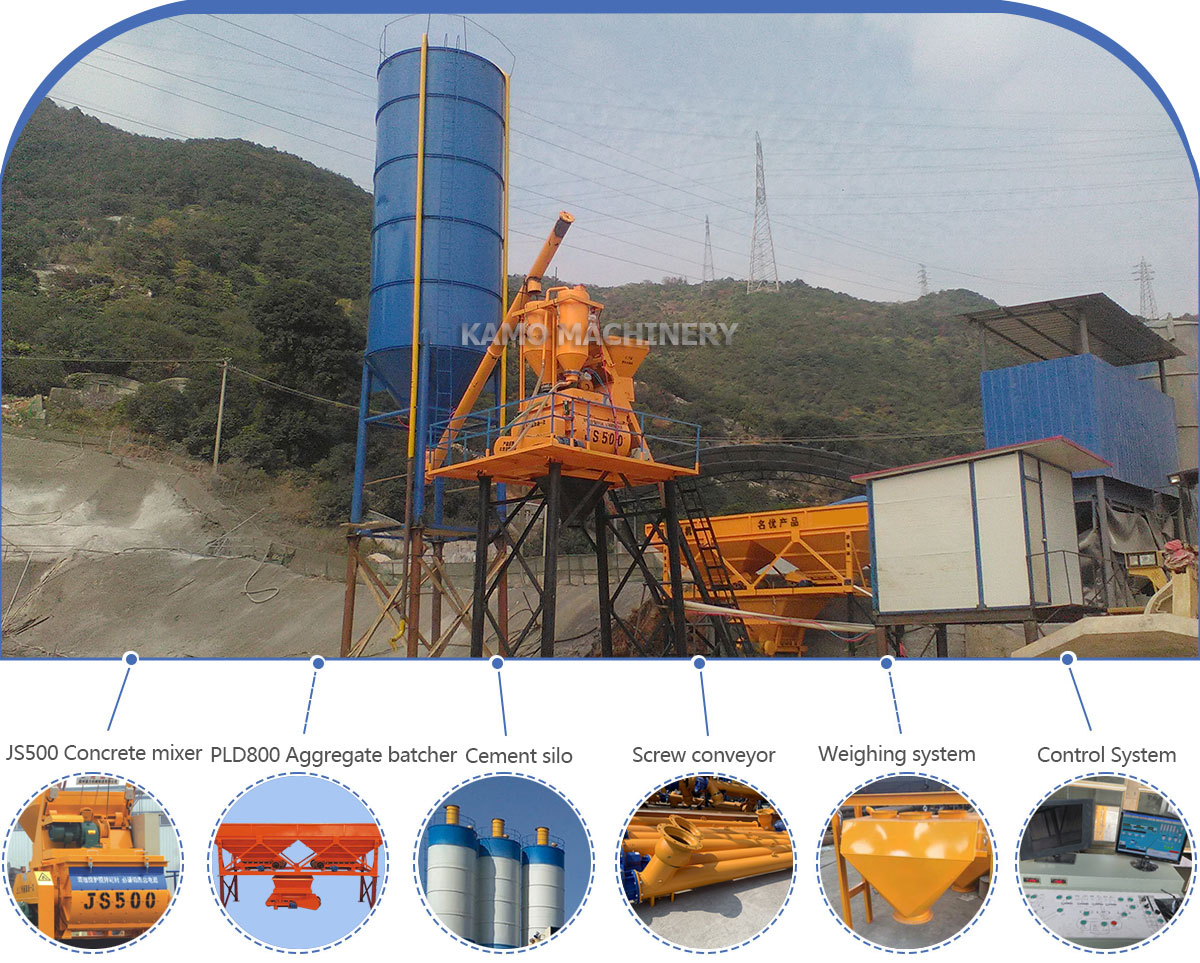

InstagramHZS25 concrete batching plant is designed and manufactured by Zhengzhou KAMO Machinery Co., Ltd.
It is a miniature concrete batching plant with automatic feeding function, the productivity is 25m3/h. It is very suitable for small construction sites, precast parts factories, small commercial concrete production plants and road maintenance.
The mixer adopts the JS series double-horizontal-shaft forced mixer, which adopts the latest design ideas of electronic weighing, microcomputer control, digital display and other control technologies. The electronic weighing has a buffer device and automatic compensation function, with high measurement accuracy. The aggregate feeding system adopts hopper feeding, which shortens the floor space of the mixing station and is economical and affordable. It is the ideal equipment for the majority of small concrete projects.
TECHNICAL PARAMETERS
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS100 | HZS120 | HZS180 |
Theoretical capacity （m³/h） | 25 | 35 | 50 | 60 | 75 | 90 | 100 | 120 | 180 |
| Mixer model | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | JS2000 | JS2000 | JS3000 |
Mixing motor power （kw） | 1×18.5 | 1×30 | 2×18.5 | 2×18.5 | 2×30 | 2×30 | 2×37 | 2×37 | 2×55 |
Number of kinds of aggregates (species) | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Max. aggregate sizes （mm） | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 |
| Discharge height（mm） | 3.8 | 3.8 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Maximum weighing value of aggregate（kg） | 1200 | 2000 | 4000 | 4000 | 5000 | 5000 | 5000 | 5000 | 8000 |
| Maximum weighing value of cement | 1200 | 1200 | 1200 | 1200 | 1500 | 1500 | 1500 | 1500 | 1800 |
| Maximum weighing value of coal ash（kg） | 500 | 500 | 600 | 600 | 800 | 800 | 800 | 800 | 1000 |
| Maximum weighing value of water（kg） | 500 | 500 | 600 | 600 | 700 | 700 | 700 | 700 | 800 |
| Maximum weighing value of additive（kg） | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 80 |
| 一 type overall dimension（L×W×H）（mm） | 11360×8280 ×7866 | 11360×8280 ×7866 | 37000×14000 ×10828 | 37000×14000 ×10828 | 35000×10000 ×9900 | 60400×16110 ×12284 | 64000×17000 ×12484 | 64000×17000 ×12484 | 74000×13540 ×11850 |
| L-type overall dimension（L×W×H）（mm） | 11360×8280 ×7866 | 11360×8280 ×7866 | 40097×20710 ×10828 | 40097×20710 ×10828 | 26174×17369 ×9900 | 47620×21148 ×12284 | 47000×21000 ×12484 | 47000×21000 ×12484 | 53800×25400 ×11850 |
MAIN FEATURE
1. With modular structure, installation and disassembly are very convenient, and the cost is low.

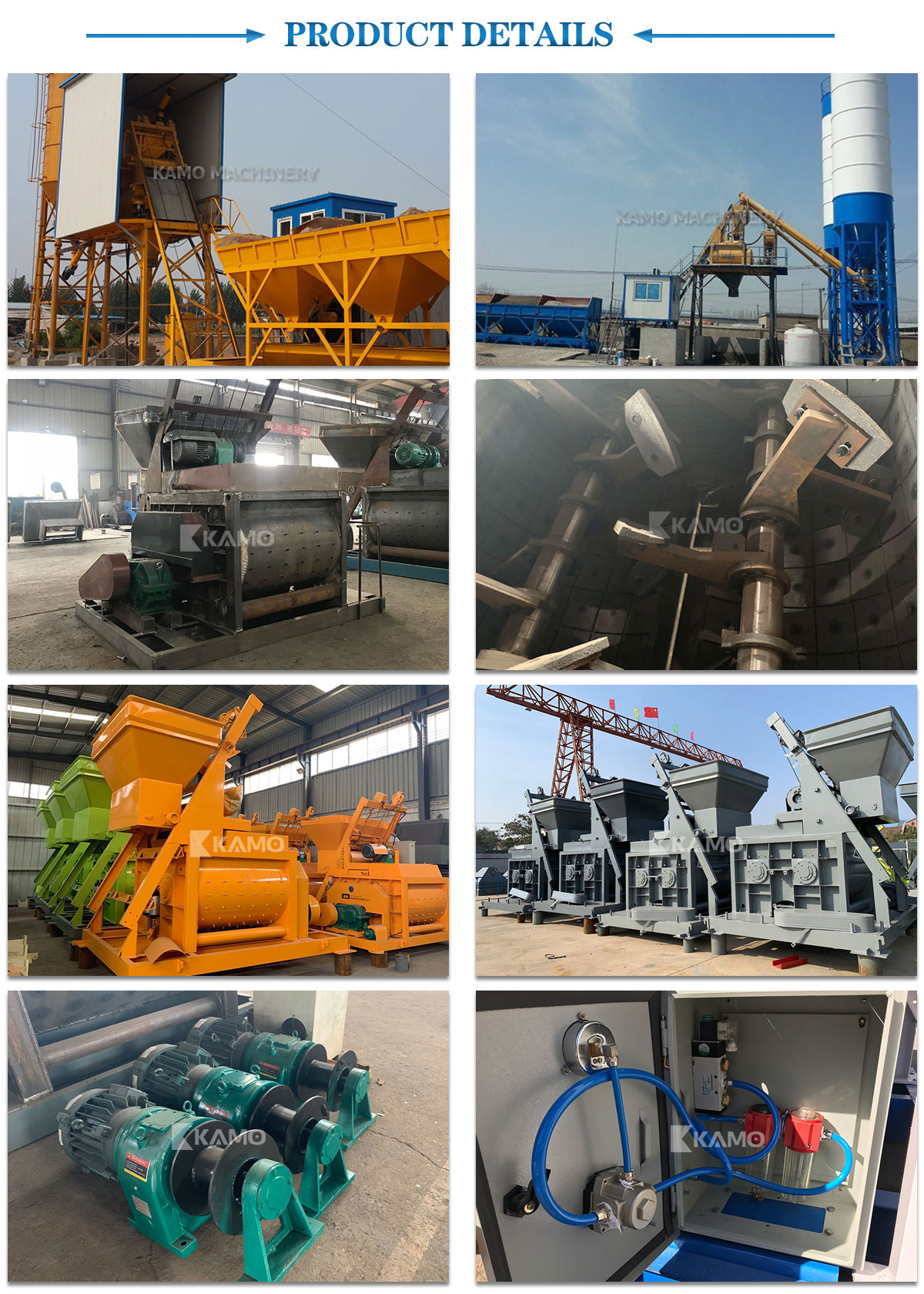

2. The concrete mixing host adopts high-quality and efficient JS500 twin-shaft forced mixer, pneumatic unloading, high wear-resistant mixing blades and liners, precise shaft end seals, SKF bearings, good quality, high efficiency and long life.
3. The aggregate is batched by the PLD800 batching machine, with high measurement accuracy and low cost.
4. Cement scale and water scale are electronically weighed with S-type load cell, with high batching accuracy.
5. Adopting the water supply system and the principle of water pump boosting, the water flow speed is accelerated and the spray is even.
6. The main components of the electrical control system are all well-known brands such as Siemens, Schneider or Chint, with reliable performance and easy operation; the electrical control room is also equipped with printers, air conditioning and lighting functions.
